Manufacturing Equipment
Manufacturing Equipment plays a vital role in delivering high-quality PCB fabrication and PCB assembly services. At FX PCB, we invest in advanced manufacturing equipment, automated production lines, and precision inspection systems to ensure every PCB meets the highest standards of quality, accuracy, and reliability.
Our Advanced Manufacturing Equipment
State-of-the-art manufacturing equipment engineered to deliver exceptional precision, consistent quality, and reliable PCB production from prototype to volume manufacturing.
AOI Inspection Machine
Intelligent Optical Inspection
Automated Optical Inspection (AOI) systems inspect every PCB for solder defects, component alignment, polarity, and missing parts, ensuring consistent quality before the next production stage.
✓ High-speed automated inspection
✓ Precise defect detection
✓ IPC-compliant quality control

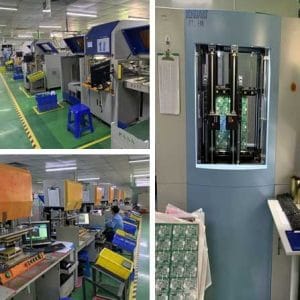

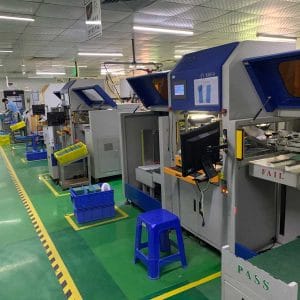

Flying Probe Tester
Precision Electrical Testing
Our Flying Probe Testing system verifies electrical continuity, detects open and short circuits, and validates PCB functionality without requiring dedicated test fixtures.
✓ Fast prototype testing
✓ Accurate open & short detection
✓ Reliable electrical verification
X-Ray Inspection Machine
Internal Solder Joint Analysis
Advanced X-ray inspection enables non-destructive analysis of hidden solder joints, including BGA, QFN, and multilayer PCB assemblies, ensuring superior assembly reliability.
✓ Hidden solder inspection
✓ BGA & QFN analysis
✓ Non-destructive quality testing
Our Manufacturing Process
Engineering
Analysis & Design Review

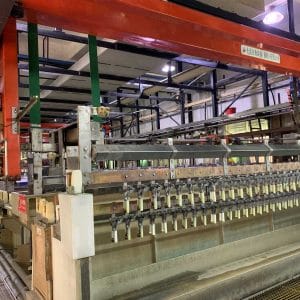

PCB Fabrication
Precision PCB Manufacturing

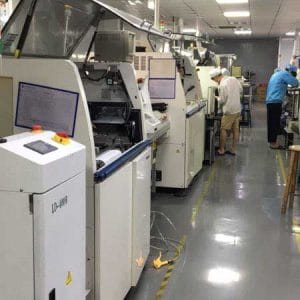

SMT Assembly
Automated Component Placement
AOI Inspection
Automated Optical Inspection
X-Ray Inspection
Internal Solder Joint Inspection
Testing
Functional & Electrical Testing

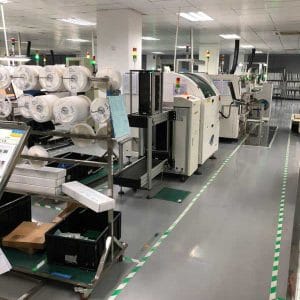

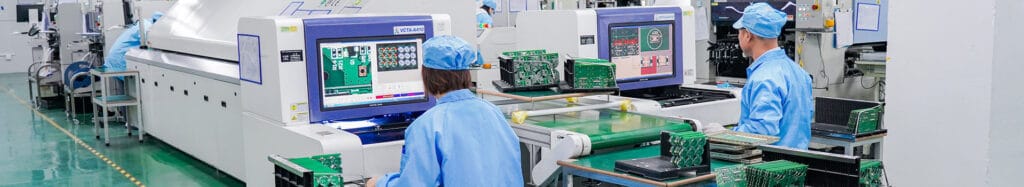

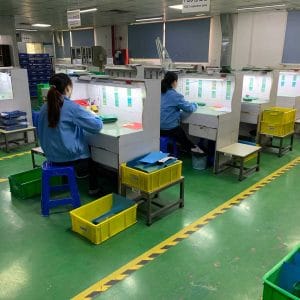

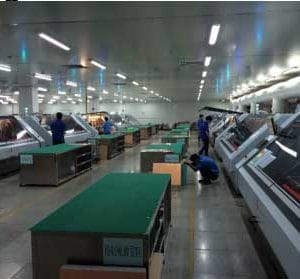

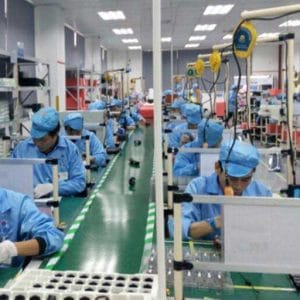

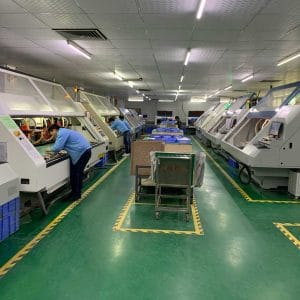

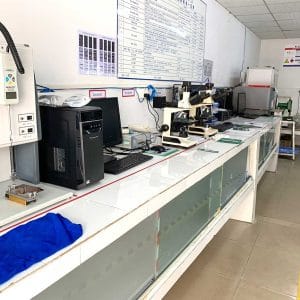

Our Production Environment
Built for Precision. Built for Quality
