Rich PCB Assembly Capabilities

Double-sided, mixed surface mount/through-hole PCB assembly, reflow, wave/selective wave soldering, 01005 (0402) size parts, 0.25mm pitch BGAs and fine-pitch parts and more.

1-2 weeks
delivery time

Get boards assembled from 24 hours once all parts are available and choose from over 600k local stock for extra fast turnaround

Direct Manufacturer
Pricing

Skip the middle man and get transparent pricing straight from the manufacturer. Get low operation, assembly and parts fees for the same high-quality and service.

Free Design for Assembly Review

Get an expert second opinion with the DFA review and ensure your entire PCB production runs smoothly from start to finish.

Pcb Assembly Manufacturing Process

Full-Feature PCB Assembly (PCBA)

Agile turnkey PCB assembly from China, catering to all requirements, whether for prototyping or mass production.

Assembly Types

  • Surface mount assembly (SMT)
  • Through-hole assembly (THT)
  • Mixed (SMT+THT)
  • Single/Double sided assembly
  • Automated/Manual soldering

Assembly Types

  • Rigid PCBs ( . FR4 and . Aluminum )
  • Flex PCBs
  • Rigid-flex PCBs

Smart Parts Sourcing and Robust Supply Chain

Inspection, Testing and IC Programming/Flashing

Assembly Types

  • Surface mount assembly (SMT)
  • Through-hole assembly (THT)
  • Mixed (SMT+THT)
  • Single/Double sided assembly
  • Automated/Manual soldering

Assembly Types

  • Rigid PCBs ( . FR4 and . Aluminum )
  • Flex PCBs
  • Rigid-flex PCBs

Pcb Assembly Manufacturing Process

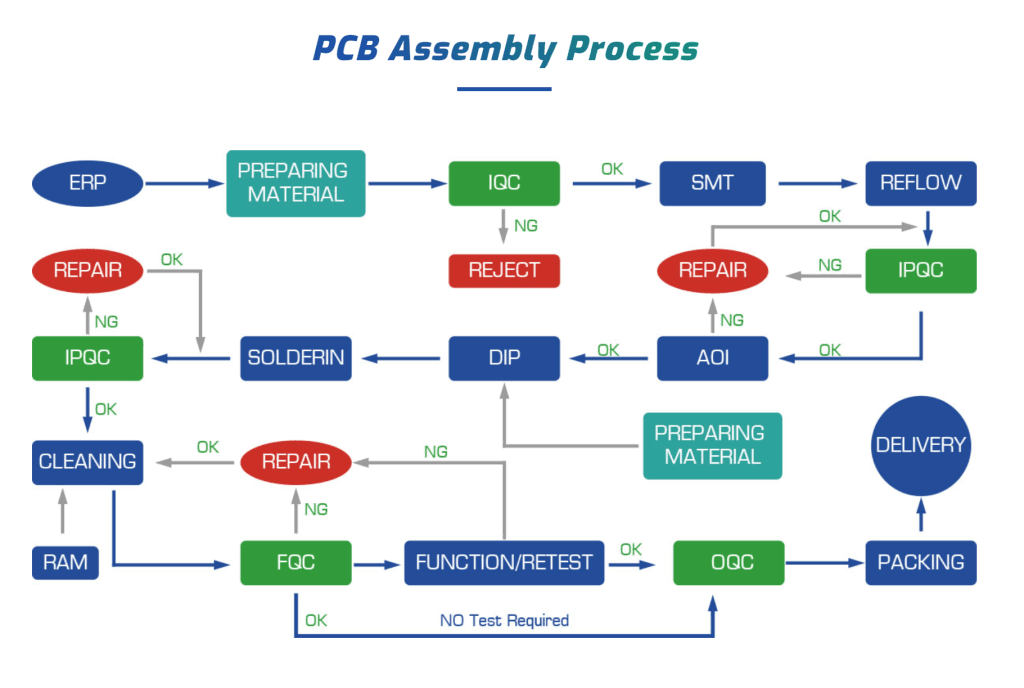

PCBA Process
This manufacturing process will make FX PCB manufacturer control the quality of your orders well, and leads us to fulfill your fast turnaround (quick turn) PCB Assembly orders in time.

Pcb Assembly Machine

  • Automatic SMT lines(Japan Yamaha) and DIP lines.
  • Smaller packages 01005, and BGA can be 0.1mm.
  • The capability of consumer electronics and industrial electronics.
  • Best waterproof technology(coating and Parylene).
  • Waterproof PCBA ———Parylene
  • Nano-vacuum coating is to pyrolyze Parylene polymer materials into nano-molecules and then perform vacuum coating treatment on the surface of the product. Vacuum vapor deposition equipment (CVD) enables the coated object to have the following characteristics: waterproof, moisture-proof, acid and alkali resistance, and salt resistance Fog, high compression resistance, biocompatibility
  • High reliability: suitable for military or commercial use, almost no gas release
  • IPX-8 protection: long diving, soaking in water
  • Ultra-thin coating: does not affect the product size(controllable 5-30um)
  • Room temperature coating: the product to be coated is at room temperature, and the temperature range under a vacuum environment is wide: suitable for minus 200°C to 200°C.
  • High transparency: film layer can reach Real integration of optical quality: the uniform thickness of various surfaces, high uniformity and stress-free surface circuit sensitivity not affected by the coating, and low friction coefficient, can be used as a dry film lubricating laye
  • Biocompatibility: inert, especially suitable for medical applications

The Advantages Of Our Factory

Specialists of our factory have many years of experience in assembling PCBs for various purposes. We guarantee:

Fast Turnaround/quick Turn Pcb Assembly Manufacture

Execution Of The Order Just In Time. We comply with the terms described in the contract. We provide fast delivery throughout the world.

Low Cost Of Pcb
Assembly

In our factory, you get the most favorable conditions for services and the sale of goods.

Programming And Function Test Service Provided

We can do the programming and function test for your PCBA per your instruction.

Pcb Prototype Assembly Quotes In One Day

FX PCB manufacturer can quote you the price very quickly, and it normally can be in one day, especially for the PCB Prototype.

Quality Control Of Pcb Assembly

As a professional PCBA manufacturer/ factory, we pay special attention to quality control of the assembly of printed circuit boards at all stages of assembly and assembly work. All printed circuit boards are tested and guaranteed.

If you are looking for a Fast turnaround or Quick Turn PCB assembly Manufacturer,  please send us an email now!

Price For Installation And Soldering Of Components

Component installation costs are dependent on the amount of soldering in the order.

THE TOTAL COST DEPENDS ON:

  • The number of boards of the same type in the order
  • The frequency of placing orders for installation
  • Number of board components
  • Cost of board components
