Embedded Ceramic in Fr4 PCB Manufacturers

Description

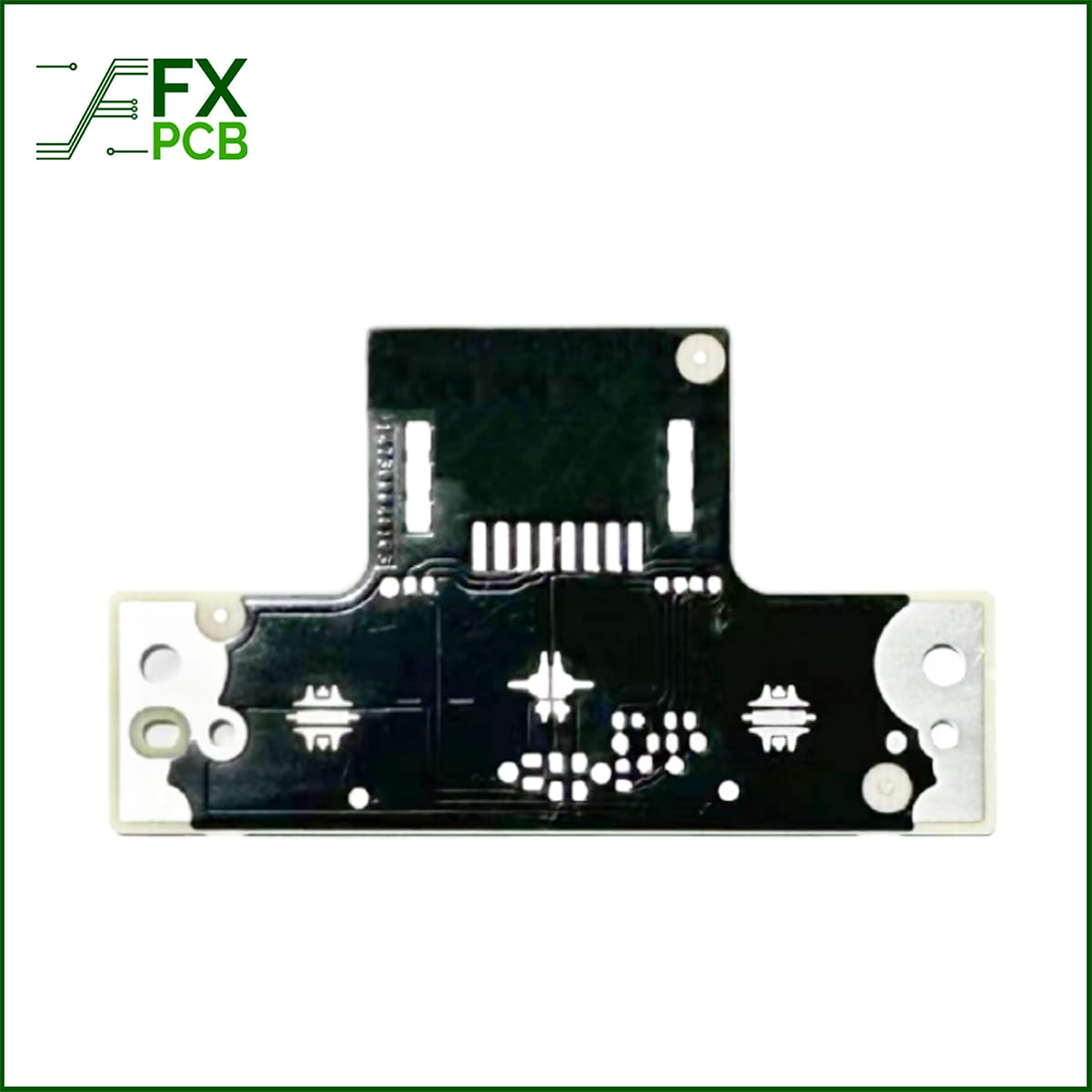

Embedded Ceramic PCB in FR4-An Advanced Thermal Management Solution in 2024

It is innovative to insert the ceramic materials into the Fr4 substrate, and it combines the excellent thermal properties of ceramic with maintaining the mechanical properties and affordable price of Fr4 material.

What is the advantage of the embedded ceramic PCB into Fr4?

As we know Fr4 is cost-effective and easy to manufacture, and It will reduce the production costs and complexity when we are embedding Ceramics in Fr4. Meanwhile, it won’t be as fragile as the Ceramic bare PCB. What’s more, the board will have the properties of Ceramic:

1, High Thermal Conductivity

The Ceramic material AI203(Alumina) and AIN(Aluminum nitride) have high thermal conductivity, which will make the heat dissipation more efficient and reduce the overheating of electronic devices risk

2, Better Electrical Performance

Ceramics have low dielectric loss and high electrical insulation, which can improve signal integrity and reduce the EMI(electromagnetic interference). It is necessary for high-frequency and high-speed applications

 3, Mechanical Stability

Ceramics have mechanical strength and stability under thermal stress, which can enhance durability and reliability. It is more suitable in harsh environments with different kinds of temperature

Embedded Ceramic PCB in Fr4 Manufacturer

Embedded Ceramic PCB in Fr4 is an ideal solution for high-performance and high-reliability applications, and FX PCB will be the right manufacturer for your embedded Ceramic PCB in Fr4. Please get in touch with FX PCB to get a price for your design. We will reply to you in 24 hours.
