PCB Test Services
PCB Test is an essential part of our manufacturing process at FX PCB. Every printed circuit board undergoes advanced inspection and testing procedures to ensure reliability, precision, and compliance with international quality standards before shipment.
External Visual Inspection
Copper thickness
Hole Copper Thickness
Hole size measurement
Dimensional measurement
V-cut depth measurement
Warp and Twist measurement
Gold and Ni thickness
Solderability Test
Impedance Control
Tensile Test

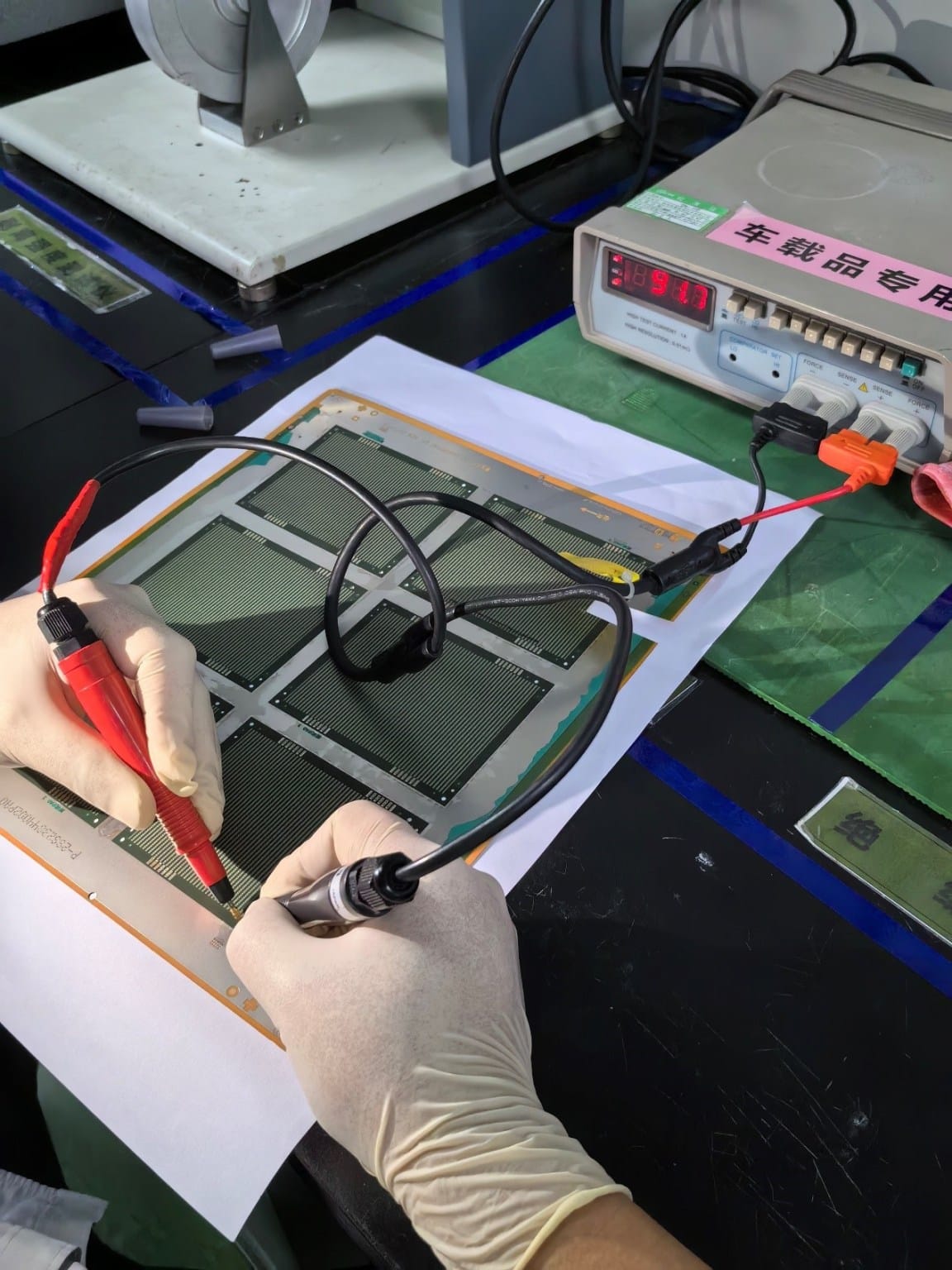

Low resistance test
Other Test

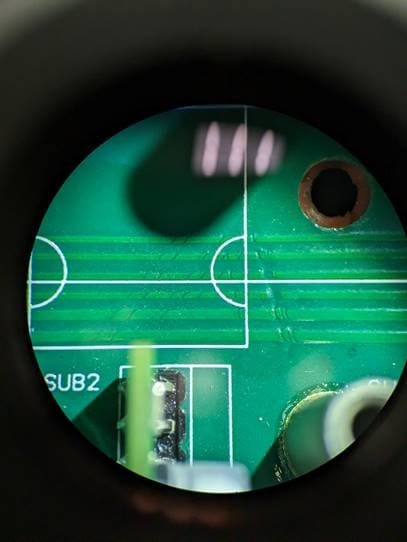

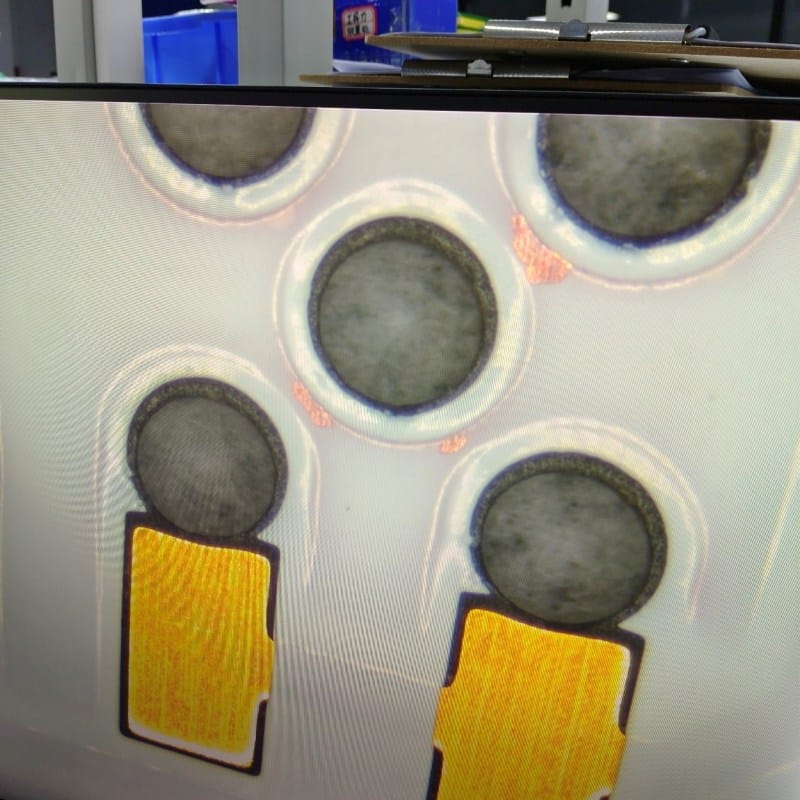

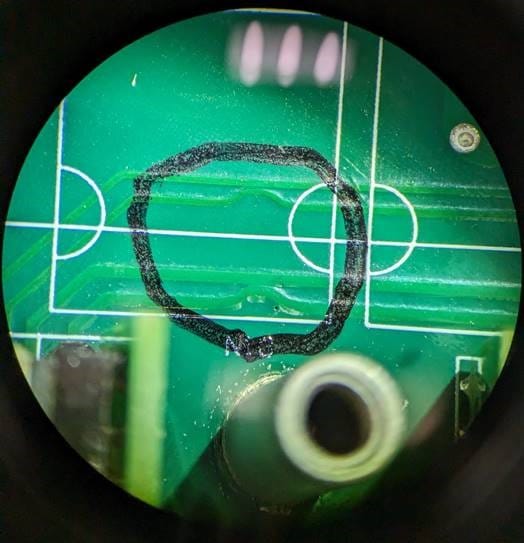

External Visual Inspection
External Visual Inspection
External visual inspection is an important step in assessing the quality and workmanship of a printed circuit board (PCB). Here’s how we can perform an external visual inspection for your PCB:
Equipment Needed
- Well-lit Work Area:
Ensure the inspector have good lighting to clearly see the details of the PCB. - Magnifying Glass or Microscope (Optional):
This can help in examining finer details, especially for densely populated boards. - Checklist or Inspection Criteria:
Have a checklist or predefined set of criteria for what to look for during the inspection. This could include criteria like Burrs, cleanliness, copper exposure and etc.
Procedure
1 Inspect the Overall Appearance:

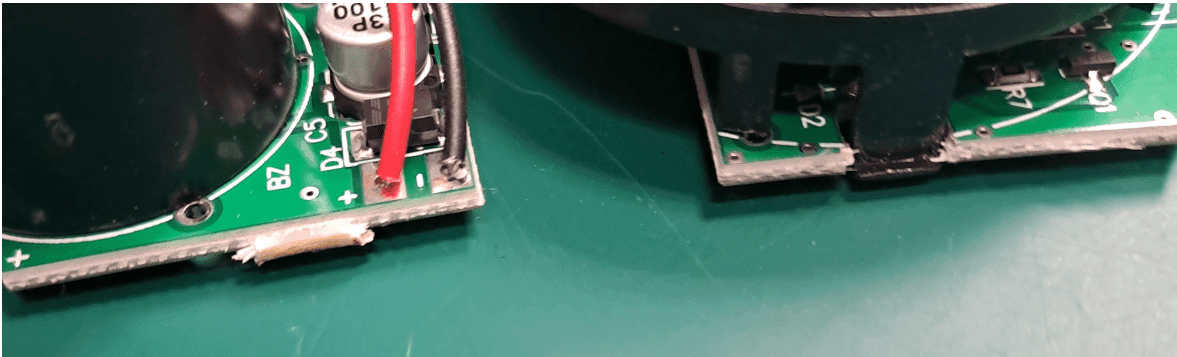

Begin by looking at the PCB as a whole. Check for any obvious physical damage, such as cracks, delamination, or warping.
2 Check for Solder Mask Defects:
Ensure that the solder mask is the right color that customer need and it covers all areas it’s intended to. Look for:
- Missing or incomplete solder mask.
- Overlapping or excessive solder mask.
- Any exposed copper that should be covered by the solder mask.
3 Check for Silkscreen missing or correctly placed.
A, silkscreen color is correct
B, Ensure that the UL or datedcode added per customer’s request
C, Missing of incomplete silkscreen
D, overlapping or silkscreen on pad
E, silkscreen are clear, legible and correctly placed

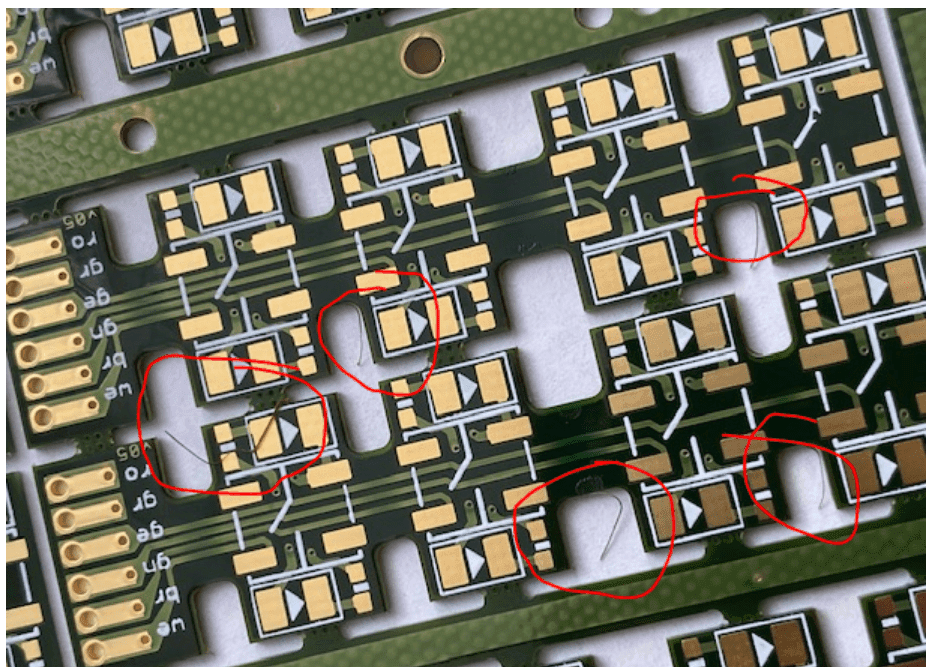

4 Look for Foreign Objects:
- Check for any foreign particles, dust, or debris on the PCB surface. These can lead to short circuits or other issues.
5,Inspect for Conformal Coating, Peekable mask or Kapton (if applicable):
- If a conformal coating,peelable mask or kapton is applied, ensure it is even, covers all intended areas, and has no visible defects
6 Verify cleanliness:
- Ensure the PCB is free from any residues, blurr or other contaminants that may affect its performance.
- Pad defect, Gold surface color is poor, tin surface in white.
7 Document Findings:
- Record any observations, defects, or issues the worker find. This documentation will be sent to customers.
Copper thickness
Copper thickness Measurement
Measuring the copper thickness on a Printed Circuit Board (PCB) typically involves the use of specialized equipment. We are using microsection or thickness gauge for the copper thickness measurement.The microsection copper thickness test is a method used to accurately measure the thickness of the copper layer on a Printed Circuit Board (PCB) by examining a cross-section of the board. This test provides precise data about the thickness of the copper layer and can reveal any anomalies or inconsistencies.
Materials and Equipment Needed:
- Prepared PCB sample
- Microscope with calibrated reticle
- Abrasive papers of varying grits (for sample preparation)
- Polishing equipment (optional)
- Etchants (for revealing layers during preparation)
- Mounting resin or epoxy
- Cutting equipment (e.g., microtome or precision saw).
Procedure
-
Sample Preparation:
Cut a representative sample of the PCB, ensuring it includes both the substrate and the copper layer. The sample should be large enough for handling and analysis. -
Mounting the Sample:
Embed the sample in a transparent mounting resin or epoxy. This ensures stability during the cutting and polishing process. -
Grinding and Polishing:
Begin with coarse-grit abrasive paper and progress to finer grits to achieve a smooth, polished surface. This step aims to remove material while maintaining a flat, even surface. -
Etching (Optional):
Apply an appropriate etchant to reveal the different layers in the cross-section. This can help distinguish the substrate from the copper layer. -

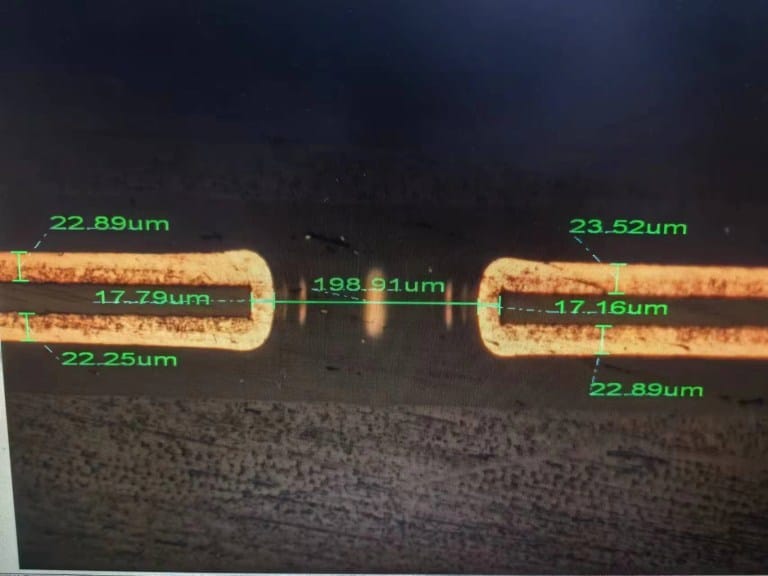

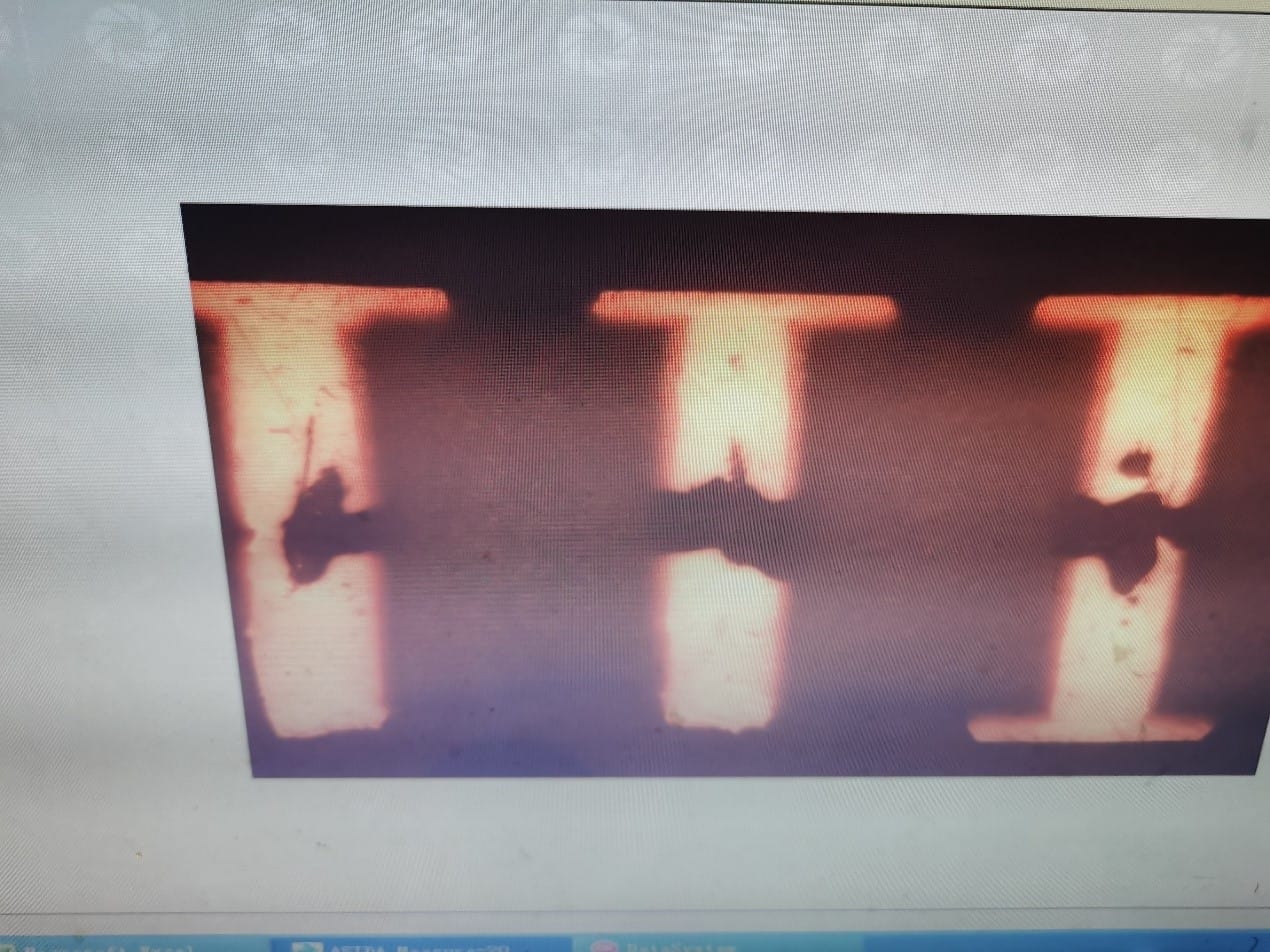

Microscopic Examination:
Place the prepared sample under a microscope with a calibrated reticle.
Focus on the cross-section to accurately measure the thickness of the copper layer. Use the reticle’s scale to make precise measurements. -
Measurements and Recordkeeping:
Take multiple measurements at different locations on the sample to ensure accuracy. Record the measurements along with the locations. -
Analysis:
Compare the measured copper thickness with the specified thickness for the PCB. Evaluate whether it falls within acceptable tolerances. -

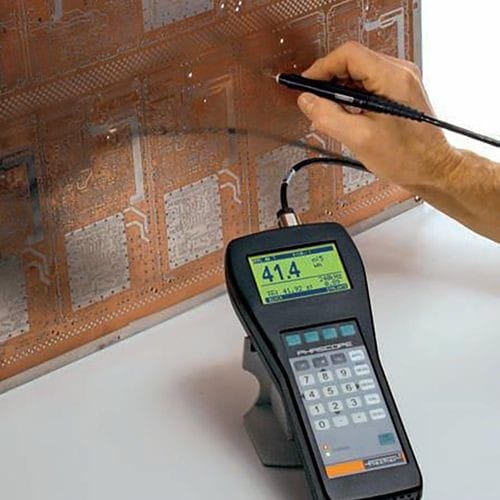

Copper Thickness Gauge:
A copper thickness gauge, also known as a copper thickness tester or meter, is a specialized instrument used to directly measure the thickness of the copper layer on a PCB. These gauges us layer on a PCB. These gauges use various techniques, such as eddy current or magnetic induction, to determine the thickness.
Features of a Copper Thickness Gauge:
- Probe or sensor for contact with the PCB surface.
- Display screen showing the measured thickness.
- Calibration options to ensure accuracy.
- Settings for different materials and coatings (in some models).
- Data logging capabilities for recordkeeping.
Using a Copper Thickness Gauge:
-
Calibration:
Ensure the gauge is calibrated according to the manufacturer’s instructions, especially if using it for different materials or coatings. -
Probe Placement:
Place the gauge’s probe onto the surface of the PCB in the area where you want to measure the copper thickness. -
Measurement:
Activate the gauge to take the measurement. The gauge will provide a reading of the copper thickness. -
Recordkeeping:
Record the measured thickness, along with the location on the PCB where the measurement was taken. -
Analysis:
Compare the measured copper thickness with the specified thickness for the PCB. Evaluate whether it falls within acceptable tolerances.
Copper thickness gauges provide a quick and non-destructive method for measuring copper thickness. They are especially useful for quality control during PCB manufacturing. However, they may have limitations in terms of accuracy compared to microsection tests. Always refer to the manufacturer’s guidelines for specific usage instructions.

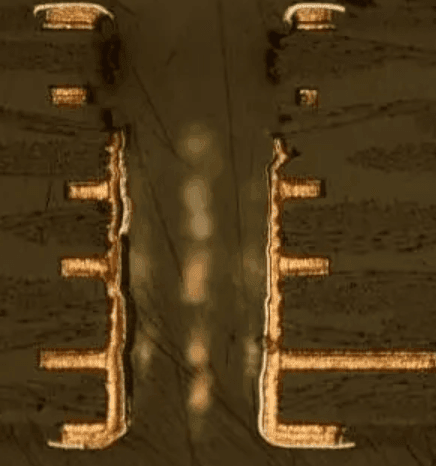

Hole Copper Thickness
Hole Copper Thickness Measurement
Measuring the copper thickness inside holes (plated through-holes) on a Printed Circuit Board (PCB) involves using a specialized tool called a microsection microscope. This tool allows you to view cross-sections of the PCB and measure the thickness of the copper plating inside the holes. How to do the microsection measurement you can refer to the copper measurement page
Common Hole Copper Problems:
-
Insufficient Copper Plating:
This occurs when the copper plating inside the holes is thinner than specified. It can lead to reduced electrical conductivity and may cause connectivity issues. -
Excessive Copper Plating:
When the copper plating is thicker than specified, it can lead to issues with solderability, particularly during assembly processes. -
Uneven Copper Distribution:
In some cases, the copper plating may not be uniform across the hole, which can result in localized electrical performance issues. -
EVoiding or Pinholes:
These are tiny gaps or holes in the copper plating, which can lead to poor electrical contact or even open circuits. -
Delamination or Adhesion Issues:
Problems with the adhesion of the copper plating to the substrate can result in peeling or flaking, which is a serious quality concern. -
Barrel Cracks or Fractures:
These are cracks in the copper plating within the holes, which can lead to mechanical instability or reduced reliability. -
Inadequate Hole Filling:
Plated through-holes should be completely filled with copper. Incomplete filling can lead to reliability issues, especially in high-stress environments.
It’s crucial to address any hole copper problems promptly, as they can significantly impact the functionality and reliability of the PCB. If you encounter any issues during inspection, follow your organization’s procedures for quality control and, if necessary, take corrective actions such as rework or replacement.
Hole size measurement
Hole size measurement
Measuring the hole size on a Printed Circuit Board (PCB) involves using specialized tools designed for this purpose.
Materials and Tools Needed:
- Calibrated PCB hole size measurement tool (caliper with depth gauge, plug gauge, or PCB hole size gauge),we normally use the plug gauge
- PCB to be measured
Procedure:
-
Select the Appropriate Measurement Tool:
Choose a tool that is suitable for measuring hole sizes accurately. Common tools used for this purpose include calipers with depth gauges, plug gauges, or specific PCB hole size gauges. -
Calibrate the Measurement Tool:
Ensure that the measurement tool is calibrated according to the guidelines to guarantee accurate readings. -
Prepare the PCB:
Ensure the PCB is clean and free from any debris, solder, or contaminants that could affect the measurement accuracy. -
Position the Measurement Tool:
If we use a caliper with a depth gauge, set the depth gauge to the desired measurement depth. If using a plug gauge, choose the appropriate size for the hole being measured. -
Insert the Measurement Tool:
Gently insert the measurement tool into the hole we want to measure. Apply even, gentle pressure to ensure accurate results. -
Take the Measurement:
Record the measurement indicated on the tool. This value represents the diameter or size of the hole. -
Repeat as Necessary:
If we need to measure multiple holes, repeat the process for each one. -
Verify Tolerance Requirements:
Compare the measured hole size with the specified tolerances that customer required . Ensure that the measured size falls within acceptable limits.
Tips:
- When using calipers, be sure to measure the hole in multiple directions (e.g., across the diameter at different points) to account for any slight irregularities.
- Use a light touch to avoid distorting the hole or the measurement tool.
- Keep the measurement tool perpendicular to the surface of the PCB to get an accurate reading.
Common Issues with Hole Sizes:
-
Oversized Holes:
Holes that are larger than specified can lead to component misalignment or poor solder joints. -
Undersized Holes:
Holes that are smaller than specified may cause difficulty in component insertion or lead to solderability issues. -
Out-of-Round Holes:
Holes that are not perfectly circular can lead to similar problems as oversized or undersized holes. -
Hole-to-Hole Variability:
Inconsistent hole sizes can result in difficulties during assembly and may impact the overall reliability of the PCB. -
Excessive Tolerances:
If holes are consistently at the extreme ends of the specified tolerance range, it may warrant further investigation or process adjustments.
Dimensional measurement
Dimensional measurement

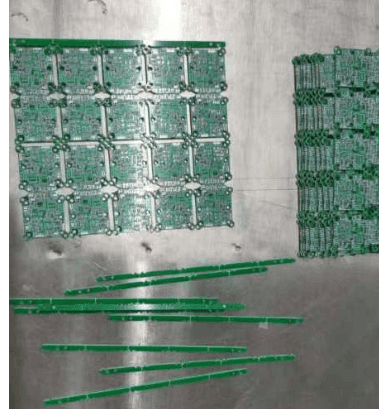

1,Firstly the worker will check the panelized way is right per customer’s drawing( right quantity in one panel), and the edge added correctly with fiducial holes or marks.
2, we will use the calipers and two-dimensional measuring instruments to measure the size. these two ways are different in their methodology, precision, and suitability for specific applications.
Here are the key differences between the two:
Methodology:
- Calipers
- Method: Calipers are handheld tools with two jaws that are used to physically measure dimensions by manually placing the jaws on opposite sides of the object (in this case, the PCB). The measurement is displayed on a scale or digital readout.
- Application: Calipers are versatile and can measure lengths, widths, and hole diameters on the PCB. They are suitable for quick, general measurements.
- Two-Dimensional Measuring Instruments:
- Method: Two-dimensional measuring instruments use advanced optical or digital technology to capture highly accurate measurements. They often involve imaging or scanning to analyze the PCB’s geometry.
- Application: These instruments can perform precise measurements of complex features, hole patterns, and even non-contact measurements. They are well-suited for high-precision applications and can capture detailed data for quality control.
Precision:
- Calipers
- Precision: Calipers are generally accurate to within a few hundredths of a millimeter or thousandths of an inch. They provide acceptable precision for many common PCB measurements.
- Two-Dimensional Measuring Instruments:
- Precision: Two-dimensional measuring instruments offer much higher precision, often providing measurements accurate to within a few micrometers. This level of precision is critical for high-tolerance applications and complex PCB geometries.
Speed and Efficiency:
- Calipers
- Speed: Calipers provide relatively quick measurements and are suitable for rapid assessments of PCB dimensions.
- Two-Dimensional Measuring Instruments:
- Speed: Two-dimensional measuring instruments may require more setup and analysis time due to their advanced technology. However, they excel at providing detailed and accurate measurements, especially for intricate PCB designs.
Non-Contact Measurement:
- Calipers
- Contact: Calipers require physical contact with the PCB surface, which can sometimes affect sensitive or fragile components.
- Two-Dimensional Measuring Instruments:
- Contact or Non-Contact: Depending on the specific instrument, some two-dimensional measuring systems can perform non-contact measurements using optical or laser technology. This can be advantageous for sensitive PCBs.
Application Specificity:
- Calipers
- General Use: Calipers are versatile and can be used for a wide range of measurements in various applications.
- Two-Dimensional Measuring Instruments:
- Specialized Use: These instruments are typically more specialized and are employed in situations where extremely high precision or complex measurements are required. They are commonly used in industries with strict quality control standards.
In summary, We will use calipers are suitable for quick and general measurements of the simple PCBs, and the two-dimensional measuring instruments will be provided in a much higher level of precision and are preferred for specialized, high-tolerance applications of PCB and quality control.
V-cut depth measurement
V-cut depth measurement
Measuring the V-cut depth of a PCB (Printed Circuit Board) involves determining the depth of the V-groove or score line that separates individual PCBs on a panel. This measurement is crucial for ensuring that the boards can be cleanly separated without causing damage or if it is so easy to be broke during assembly.
Materials and Tools Needed:
- Calipers or depth gauge
- PCB sample with V-cut
- Clean, flat surface
Procedure
- Prepare the PCB:Ensure the PCB panel is clean and free from any debris or contaminants that could affect the measurement.
- Select the Measurement Tool:Choose between digital calipers with a depth gauge or a specialized depth gauge tool. Either tool can provide accurate measurements of the V-cut depth.
- Zero the Measurement Tool (if applicable):If using digital calipers, zero them out on a flat surface before taking any measurements. If using a specialized depth gauge, ensure it is properly zeroed.
- Position the Measurement Tool:Place the measurement tool’s jaws or anvil at one end of the V-cut groove, ensuring it is in full contact with the surface.
- Measure the Depth:Carefully insert the measurement tool into the V-cut groove until it reaches the bottom. Take the measurement at this point.
- Record the Measurement:Document the measured V-cut depth. Specify whether the measurement is in millimeters or inches.
- Repeat as Necessary:If there are multiple V-cut grooves on the PCB panel, repeat the measurement process for each one.
Tips:
- Apply consistent, gentle pressure when taking measurements to prevent distortion or damage to the PCB.
- Measure multiple times to confirm the accuracy of your readings, especially for critical applications.
Common Issues with V-cut Depth:
- Insufficient Depth:If the V-cut depth is too shallow, it may not fully separate the individual PCBs, leading to difficulty in cleanly breaking them apart.
- Excessive Depth:An overly deep V-cut may weaken the structural integrity of the PCB panel and could potentially lead to breakage or damage during handling.
- Inconsistent V-cut Depths:Variations in V-cut depths across the PCB panel can lead to difficulties in separating the boards or may result in uneven edges.
- Deviations from Specifications:If the V-cut depths deviate from the specified tolerances provided in the PCB design or manufacturing specifications, it may indicate a manufacturing issue that needs to be addressed.
Regularly checking and verifying V-cut depths is an important part of quality control in PCB manufacturing, especially for panelized PCBs.
Warp and Twist measurement

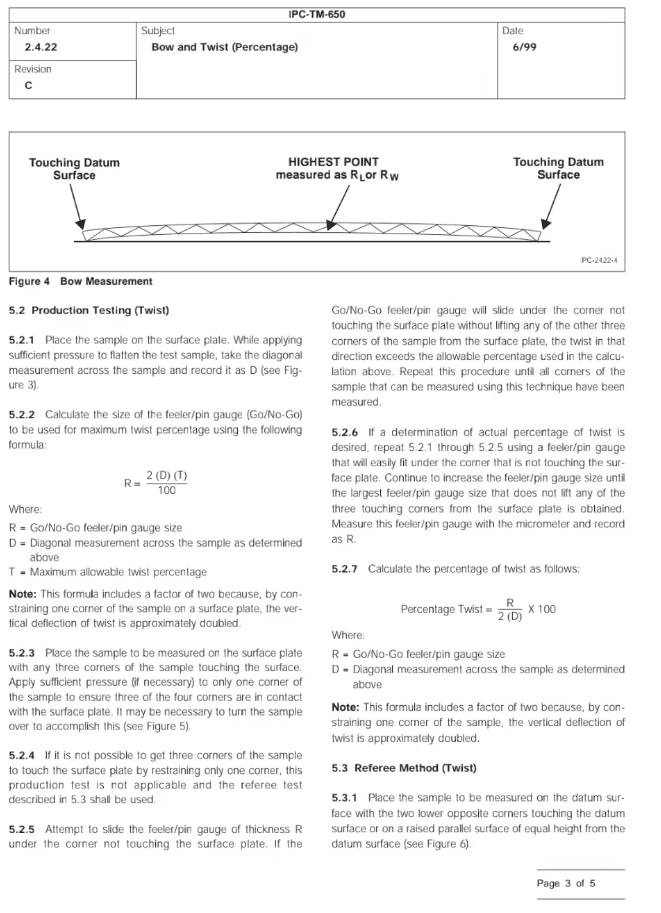

Warp and Twist measurement
Warp and Twist measurement
Measuring warp and twist on a Printed Circuit Board (PCB) involves evaluating the flatness and planarity of the board’s surface. This is important for ensuring that the PCB will fit properly into an enclosure or assembly without causing mechanical stress or electrical issues.
Materials and Tools Needed:
- Flat surface (granite or optical table)
- Feeler gauges or thickness gauges
- Dial indicator or laser-based measurement system (optional, for higher precision)
- PCB sample
Procedure:
-
Safety Precautions:
Put on appropriate safety equipment, including gloves, safety goggles, and a lab coat. Ensure you are working in a well-ventilated area, and follow any additional safety guidelines provided by the manufacturer. -
Power Up the XRF Spectrometer:
Turn on the XRF spectrometer and allow it to warm up according to the manufacturer’s instructions. -
Prepare the PCB Sample:
Ensure the PCB sample is clean and free from any contaminants that could affect the measurement. Place it on the sample holder or stage of the XRF spectrometer. -
Select Measurement Mode:
Choose the appropriate mode on the XRF spectrometer for plating thickness measurements. This mode is usually labeled as “thickness” or similar. -
Position the Measurement Spot:
Use the XRF spectrometer to align the measurement spot with the area on the PCB where you want to measure the gold or nickel thickness. -
Initiate the Measurement:
Activate the XRF spectrometer to emit X-rays. These X-rays will interact with the atoms in the plating material, causing characteristic X-ray emissions that the spectrometer will detect and analyze. -
Obtain the Measurement Result:
The XRF spectrometer will display or output the measured thickness of the gold and nickel plating. The result is typically given in micrometers (µm) or another appropriate unit. -
Repeat as Necessary:
If you need to measure multiple areas or multiple PCBs, repeat the process for each one. -
Record and Document Results:
Document the measured gold and nickel thicknesses along with the specific locations on the PCB where the measurements were taken. -
Interpret Results:
Compare the measured values with the specified tolerances provided in the PCB design or manufacturing specifications. Ensure they fall within acceptable limits. -
Power Down the XRF Spectrometer:
Once you have completed the measurements, follow the manufacturer’s instructions for shutting down the XRF spectrometer.
Tips:
- Follow the manufacturer’s guidelines and safety precautions for the specific XRF spectrometer you are using.
- Ensure that the XRF spectrometer is properly calibrated for accurate results.
- For accurate measurements, ensure that the PCB sample is flat and that the measurement spot is positioned accurately.
Remember that using an XRF spectrometer requires proper training and adherence to safety guidelines. If you are unfamiliar with the specific instrument, consult the user manual or seek guidance from a qualified expert.
Common Issues with Warp and Twist:
-
Excessive Warp:
If the PCB has significant bowing or curvature, it may not fit properly into an enclosure or assembly, potentially causing mechanical stress or electrical issues. -
Twist or Torsion:
Twisting of the PCB may lead to uneven contact with components or connectors, affecting the reliability of the board. -
Non-Uniform Flatness:
Variations in flatness across the PCB surface can lead to difficulties in mounting components or enclosures, potentially affecting the assembly process. -
Exceeding Tolerance Limits:
If the PCB’s warp or twist exceeds specified tolerances, it may indicate a manufacturing issue that needs to be addressed.
Regularly checking and verifying warp and twist is an important part of quality control in PCB manufacturing, especially for applications where flatness is critical.
Conducting open and short tests on a Printed Circuit Board (PCB) is crucial for several reasons:
- Fault Detection:Open and short tests help identify any electrical faults on the PCB. An open circuit is a break in the electrical path, while a short circuit is an unintended connection between two points. Detecting these faults is essential for ensuring proper functionality.
2. Quality Assurance:By performing open and short tests, manufacturers can verify that the PCB meets the specified electrical requirements. This ensures that only functional and reliable boards are shipped to customers.
3. Preventing Field Failures:Detecting and rectifying open and short circuits during manufacturing prevents faulty PCBs from reaching end-users. This helps reduce the likelihood of field failures and costly product recalls.
4. Component Verification:Open and short tests verify that all components are correctly placed, soldered, and connected on the PCB. This includes checking for correct polarity, orientation, and proper soldering.
5. Reliability and Longevity Assurance:Ensuring that there are no open or short circuits on the PCB contributes to the long-term reliability and functionality of the electronic device or system in which it is used.
6. Preventing Component Damage:Detecting short circuits helps prevent components from being exposed to excessive current, which could potentially damage or destroy them.
7. Compliance with Design Specifications:Open and short tests confirm that the PCB meets the design specifications and requirements outlined in the design documents.
8. Compatibility and Interoperability:Open and short tests ensure that the PCB will work correctly with other components and systems within the final product, preventing compatibility issues.
9. Reducing Rework and Scrap:Identifying and rectifying open and short circuits early in the manufacturing process minimizes the need for costly rework or scrap, ultimately improving production efficiency and reducing costs.
10. Compliance with Industry Standards:Many industries have specific quality and performance standards that PCBs must meet. Open and short testing helps ensure compliance with these standards.
Verification of Manufacturing Process: Open and short tests also serve as a means of verifying the quality and effectiveness of the PCB manufacturing process itself.
In summary, open and short testing is a critical quality control step that helps guarantee the electrical integrity and functionality of PCBs, ultimately contributing to the production of high-quality electronic devices or systems.
- Fault Detection:Open and short tests help identify any electrical faults on the PCB. An open circuit is a break in the electrical path, while a short circuit is an unintended connection between two points. Detecting these faults is essential for ensuring proper functionality.
Gold and Ni thickness
Gold and Ni thickness Measurement
Measuring the thickness of gold and nickel plating on a Printed Circuit Board (PCB) involves using specialized equipment and techniques. Here’s a step-by-step guide for both gold and nickel thickness measurements:
Using an X-ray fluorescence (XRF) spectrometer to test the gold and nickel thickness of a Printed Circuit Board (PCB) involves the following steps:
Materials and Tools Needed:
- X-ray fluorescence (XRF) spectrometer
- PCB sample with gold and nickel plating
- Safety equipment (such as gloves, safety goggles, and lab coat)
- User manual for the specific XRF spectrometer (if available)
Procedure:
-
Safety Precautions:
Put on appropriate safety equipment, including gloves, safety goggles, and a lab coat. Ensure you are working in a well-ventilated area, and follow any additional safety guidelines provided by the manufacturer. -
Power Up the XRF Spectrometer:
Turn on the XRF spectrometer and allow it to warm up according to the manufacturer’s instructions. -
Prepare the PCB Sample:
Ensure the PCB sample is clean and free from any contaminants that could affect the measurement. Place it on the sample holder or stage of the XRF spectrometer. -
Select Measurement Mode:
Choose the appropriate mode on the XRF spectrometer for plating thickness measurements. This mode is usually labeled as “thickness” or similar. -
Position the Measurement Spot:
Use the XRF spectrometer to align the measurement spot with the area on the PCB where you want to measure the gold or nickel thickness. -
Initiate the Measurement:
Activate the XRF spectrometer to emit X-rays. These X-rays will interact with the atoms in the plating material, causing characteristic X-ray emissions that the spectrometer will detect and analyze. -
Obtain the Measurement Result:
The XRF spectrometer will display or output the measured thickness of the gold and nickel plating. The result is typically given in micrometers (µm) or another appropriate unit. -
Repeat as Necessary:
If you need to measure multiple areas or multiple PCBs, repeat the process for each one. -
Record and Document Results:
Document the measured gold and nickel thicknesses along with the specific locations on the PCB where the measurements were taken. -
Interpret Results:
Compare the measured values with the specified tolerances provided in the PCB design or manufacturing specifications. Ensure they fall within acceptable limits. -
Power Down the XRF Spectrometer:
Once you have completed the measurements, follow the manufacturer’s instructions for shutting down the XRF spectrometer.
Tips:
- Follow the manufacturer’s guidelines and safety precautions for the specific XRF spectrometer you are using.
- Ensure that the XRF spectrometer is properly calibrated for accurate results.
- For accurate measurements, ensure that the PCB sample is flat and that the measurement spot is positioned accurately.
Remember that using an XRF spectrometer requires proper training and adherence to safety guidelines. If you are unfamiliar with the specific instrument, consult the user manual or seek guidance from a qualified expert.
Common Issues with Plating Thickness:
-
Insufficient Plating Thickness:
Inadequate gold or nickel thickness can result in poor solderability, reduced corrosion resistance, or problems with electrical conductivity. -
Excessive Plating Thickness:
Over-plating can lead to issues with component fit, potential solderability problems, and increased costs. -
Non-Uniform Plating:
Variations in plating thickness across the PCB can lead to uneven electrical performance or issues with soldering. -
Adhesion Issues:
Problems with the adhesion of the plating to the substrate can lead to peeling or flaking, which is a serious quality concern.
Regularly checking and verifying warp and twist is an important part of quality control in PCB manufacturing, especially for applications where flatness is critical.
Solderability Test
Solderability Test
Solderability testing of a Printed Circuit Board (PCB) assesses the ability of the PCB’s surface to form a reliable and consistent solder joint. This is a crucial step in PCB manufacturing to ensure that components can be soldered effectively during assembly. Here’s a step-by-step guide for conducting a solderability test:
Materials and Tools Needed:
- PCB samples to be tested
- Solder pot or soldering iron
- Solder wire (compliant with industry standards)
- Flux (optional, for hand soldering)
- Timer
- Flux remover (if flux is used)
- Inspection equipment (magnifying glass or microscope)
- Solderability testing standard (e.g., IPC standards)
Procedure:
- Prepare the PCB Sample: Ensure that the PCB samples are clean, free from contaminants, and have not been stored for an extended period. If needed, clean the PCB surface with a suitable cleaning agent.
- Preheat the Solder Pot (if using): If you are using a solder pot, preheat it to the appropriate temperature as specified in industry standards or specific requirements for the PCB material.
- Set the Soldering Temperature: Ensure that the soldering temperature is appropriate for the solder alloy being used. Common lead-free solder alloys have melting temperatures around 220-240°C (428-464°F).
- Apply Flux (if using): Apply a thin layer of flux to the surface of the PCB. Flux helps improve the wetting and flow of solder onto the PCB surface. Ensure the flux used complies with industry standards.
-
Soldering Process: a Dip Test (if using a solder pot): Dip the PCB into the solder pot for a specified duration (e.g., 2-5 seconds) to allow the solder to wet the surface. Withdraw the PCB slowly from the solder pot to allow excess solder to drain off.
b Hand Soldering (alternative method): If a soldering iron is used, apply a small amount of solder to the tip of the iron. Place the tip of the soldering iron onto the PCB surface for a specified duration (e.g., 2-5 seconds). Ensure that the solder wets the surface evenly. - Inspect the Solder Joint: Use a magnifying glass or microscope to inspect the solder joint for defects such as poor wetting, incomplete coverage, or irregularities.
- Record the Test Results: Document the results of the solderability test, noting whether the solder joint meets the specified criteria defined by industry standards.
-
Repeat as Necessary:
If you need to measure multiple areas or multiple PCBs, repeat the process for each one. -
Record and Document Results:
Document the measured gold and nickel thicknesses along with the specific locations on the PCB where the measurements were taken. - Clean the PCB (if flux is used): If flux was applied, use a suitable flux remover to clean the PCB and remove any residue. This step is important to ensure the long-term reliability of the solder joint.
- Repeat the Test (if necessary): Repeat the solderability test on additional PCB samples to ensure consistency and reliability in the soldering process.
- 10. Evaluate the Results: Compare the solderability test results with the acceptance criteria defined in industry standards or specific requirements for the PCB.
- Record and Document the Test Data: Keep a record of the test data, including the soldering parameters, inspection results, and any deviations from the specified criteria.
Important Considerations:
- Follow industry standards and specific customer requirements for solderability testing procedures and acceptance criteria.
- Ensure that all equipment used in the solderability test is calibrated and functioning properly.
- Perform solderability testing in a controlled environment to minimize the impact of external factors on the results.
- Regularly review and update solderability testing procedures to align with evolving industry standards and best practices.
By following these steps, you can effectively conduct a solderability test on a PCB to ensure the quality and reliability of the solder joints during assembly.
Impedance Control
Impedance Control
Impedance control testing is a critical step in ensuring that a Printed Circuit Board (PCB) meets the specified impedance requirements. This is particularly important for high-speed digital and RF applications where maintaining precise signal integrity is crucial.
How to Perform Impedance Control Testing:
- Prepare Test Equipment: Obtain an impedance testing system, which typically includes a Vector Network Analyzer (VNA) or Time Domain Reflectometer (TDR). Ensure that it’s calibrated and functioning properly.
- Select Test Points: Identify critical traces on the PCB that require impedance control. These are usually high-speed signal traces or transmission lines.
- Calibrate the Testing System: Perform a calibration on the testing system using the provided calibration kit. This step is essential for accurate measurements.
- Set Testing Parameters: Configure the testing system with the appropriate frequency range, test mode, and measurement parameters. Ensure that it matches the requirements specified in the PCB design.
- Connect Test Probes or Fixture: Attach the test probes or fixture to the test points on the PCB. The probes should make secure and reliable electrical contact with the traces.
- Perform Impedance Measurement: Run the impedance measurement using the testing system. The system will provide readings for impedance values at different frequencies.
- Record and Analyze Results: Record the impedance values obtained during the test. Compare these values with the specified impedance requirements outlined in the PCB design or industry standards.
- Evaluate Pass/Fail Criteria: Determine whether the measured impedance values fall within the acceptable range defined in the design specifications. Deviations from the specified values may require further investigation.
- Repeat for Critical Traces: Repeat the impedance measurement process for all critical traces on the PCB that require impedance control.
- Document Test Results: Keep a detailed record of the impedance measurements, noting the test points, frequencies, and measured impedance values. This documentation is important for quality control and future reference.
Why Impedance Control Testing is Necessary:
- Signal Integrity Assurance:Impedance control testing verifies that signal traces meet their specified impedance values, ensuring that signals propagate with minimal distortion, reflection, and attenuation.
- Minimization of Signal Degradation: Well-controlled impedance helps prevent signal degradation due to reflections, ensuring that signals arrive at their destination accurately.
- Reduction of EMI and Crosstalk:Proper impedance matching minimizes electromagnetic interference (EMI) and crosstalk between traces or layers, which is crucial for reliable circuit operation.
- Compliance with Standards:Many industry standards and protocols, such as USB, Ethernet, and PCIe, have specific impedance requirements. Adhering to these standards ensures compatibility and reliable communication.
- Consistency Across Designs:Impedance control testing ensures consistent performance across different PCBs of the same design, providing reliable and predictable behavior.
- Optimized Power Distribution: Controlled impedance aids in designing efficient power distribution networks (PDNs), which is critical for stable voltage levels across the PCB.
- Avoidance of Signal Reflections: Uncontrolled impedance can lead to signal reflections, causing data errors, timing issues, and affecting the functionality of the circuit.
- Enhanced Manufacturing Yield: Well-controlled impedance reduces the likelihood of manufacturing defects related to signal integrity, leading to higher production yields.
By performing impedance control testing, you ensure that your PCB design meets the specified requirements, ultimately leading to a reliable and high-performance electronic device.
Tensile Test
Tensile Test
Performing a tensile test on a Printed Circuit Board (PCB) is not a standard procedure, as PCBs are primarily designed for electrical connections rather than mechanical testing. However, in certain specialized applications or research scenarios, a tensile test might be conducted for specific purposes. Here’s a guide on how to perform a tensile test on a PCB, along with the reasons why you might consider doing so:
How to Perform a Tensile Test on a PCB:
Materials and Tools Needed:
- Tensile testing machine (universal testing machine)
- PCB sample
- Grips suitable for PCB testing (e.g., flat, non-slip grips)
- Safety equipment (gloves, safety goggles, lab coat)
- Calipers or other measuring tools (for initial dimensions)
Procedure:
- Safety Precautions: Put on appropriate safety equipment, including gloves, safety goggles, and a lab coat. Ensure you are working in a well-ventilated area.
- Prepare the PCB Sample: Cut or obtain a representative PCB sample that is suitable for the tensile test. Ensure that it’s clean and free from any contaminants.
- Measure Initial Dimensions: Use calipers or other measuring tools to record the initial dimensions of the PCB sample, including its length, width, and thickness.
- Set Up the Tensile Testing Machine: Ensure the tensile testing machine is calibrated and set up according to the manufacturer’s instructions. Choose appropriate grips for securely holding the PCB.
- Mount the PCB in the Grips: Securely clamp the PCB sample into the grips of the tensile testing machine. Ensure that the grips are flat and do not damage the PCB.
- Perform the Tensile Test: Start the tensile testing machine and apply a controlled tensile force to the PCB sample. The machine will stretch the sample until it reaches its breaking point.
- Record Data: Use a data acquisition system (if available) to record data during the test, including force applied and corresponding deformation.
- Observe the Test: Watch the test carefully to note any changes in the PCB’s behavior, such as deformation, cracking, or failure.
- Record Test Results: Document the maximum force applied to the PCB before failure, as well as any observations regarding the PCB’s behavior during the test.
- Analyze Results: Compare the results with any specified requirements or standards. Ensure they fall within acceptable limits.
- Evaluate Failure Mode: If the PCB fails during the test, observe and document the specific failure mode (e.g., fracture, delamination, etc.).
- Safety During Failure: Be cautious during the test, especially if the PCB fails suddenly. Sharp edges or fragments could pose a safety risk.
Why Tensile Testing Might Be Considered for a PCB:
- Research and Development: In specialized applications or research settings, engineers or scientists might conduct tensile tests on PCBs to understand their mechanical properties and behavior under load.
- Material Evaluation: Testing the mechanical properties of PCB materials can provide insights into their suitability for specific applications, especially in environments with mechanical stresses.
- Failure Analysis: If a PCB has failed in a real-world scenario due to mechanical stresses, a tensile test might be conducted to replicate and understand the failure mode.
- Custom Applications: In unique or custom applications, where the PCB will be subjected to unusual mechanical stresses, a tensile test might be performed to assess its performance.
- Quality Assurance (in some specialized industries): In industries with very specific and rigorous mechanical requirements, tensile testing may be part of quality assurance procedures.
Please note that tensile testing PCBs is not a standard practice and should be carried out by professionals with expertise in both mechanical testing and PCB technology. It is also important to remember that PCBs are primarily designed for electrical functionality, and their mechanical properties are typically not their primary consideration.
Low resistance test
Low resistance test
Conducting a low resistance test on a Printed Circuit Board (PCB) is crucial to ensure that there are no unintended short circuits or excessive resistances that could affect the functionality of the board. Here’s a step-by-step guide on how to perform a low resistance test on a PCB:
Materials and Tools Needed:
- Multimeter with a low-resistance measurement function
- Probes for the multimeter
- PCB to be tested
Procedure:
- Safety Precautions: Ensure that the PCB is not connected to any power source during the resistance test to prevent any potential electrical hazards.
- Set Up the Multimeter: Turn on the multimeter and set it to the low-resistance measurement range. This range is typically labeled with an “Ω” symbol.
- Zero Out the Multimeter (Optional): If your multimeter has a zeroing function, it’s a good practice to zero it out before starting the test. This ensures that any resistance introduced by the probes is accounted for.
- Identify Test Points: Identify the specific points on the PCB where you want to measure resistance. These could be points where you suspect there might be a short circuit or where you need to verify low resistance connections.
- Clean Test Points (if necessary): Ensure that the test points are clean and free from any contaminants or oxidation, as these can affect the accuracy of the resistance measurement.
- Position Probes: Touch the multimeter probes to the test points on the PCB. Ensure that the probes make good, solid contact with the test points. Apply gentle pressure to ensure a secure connection.
- Read Resistance Value: Read the resistance value displayed on the multimeter. If the resistance is within the acceptable range (typically very low ohms), it indicates that there is a good electrical connection at the test points.
- Verify Continuity (Optional): If your multimeter has a continuity test function, you can also use it to quickly check for low resistance connections. The multimeter will emit a beep if there is continuity, indicating a low resistance path.
- Repeat as Necessary: Repeat the process for other test points on the PCB that require low resistance verification.
- Record Results: Document the resistance values for each tested connection. This record can be useful for quality control purposes or for troubleshooting if issues arise later.
- Inspect for Anomalies: Pay attention to any unexpected or unusually high resistance readings, as they may indicate a problem with the PCB.
- Correct Any Issues: If you identify high resistance or open connections during the test, investigate and correct the issue before finalizing the PCB.
Why Low Resistance Testing is Important:
- Short Circuit Detection: It helps identify unintended short circuits between traces or components, which can cause malfunctions or damage.
- Quality Control: Low resistance testing is a critical step in the quality control process to ensure that the PCB meets the required electrical specifications.
- Verification of Critical Connections: It verifies that crucial connections, especially in high-power or high-frequency circuits, have the expected low resistance values.
- Troubleshooting: In case of operational issues, low resistance testing can help identify and rectify electrical connectivity problems.
- Prevention of Overheating: Ensuring low resistance connections prevents excessive heat buildup due to high resistance connections, which can lead to component damage.
By following this procedure, you can effectively perform a low resistance test on a PCB to ensure its electrical integrity and functionality.
- Short Circuit Detection: It helps identify unintended short circuits between traces or components, which can cause malfunctions or damage.
Other Test
Other Test
Customer can still choose other test, like salt spray test, voltage withstand test, high and low temperature cycle test and etc.
Our Advanced Manufacturing Equipment
High-precision machines and inteligent production systems quarantee superior quality PCBs.

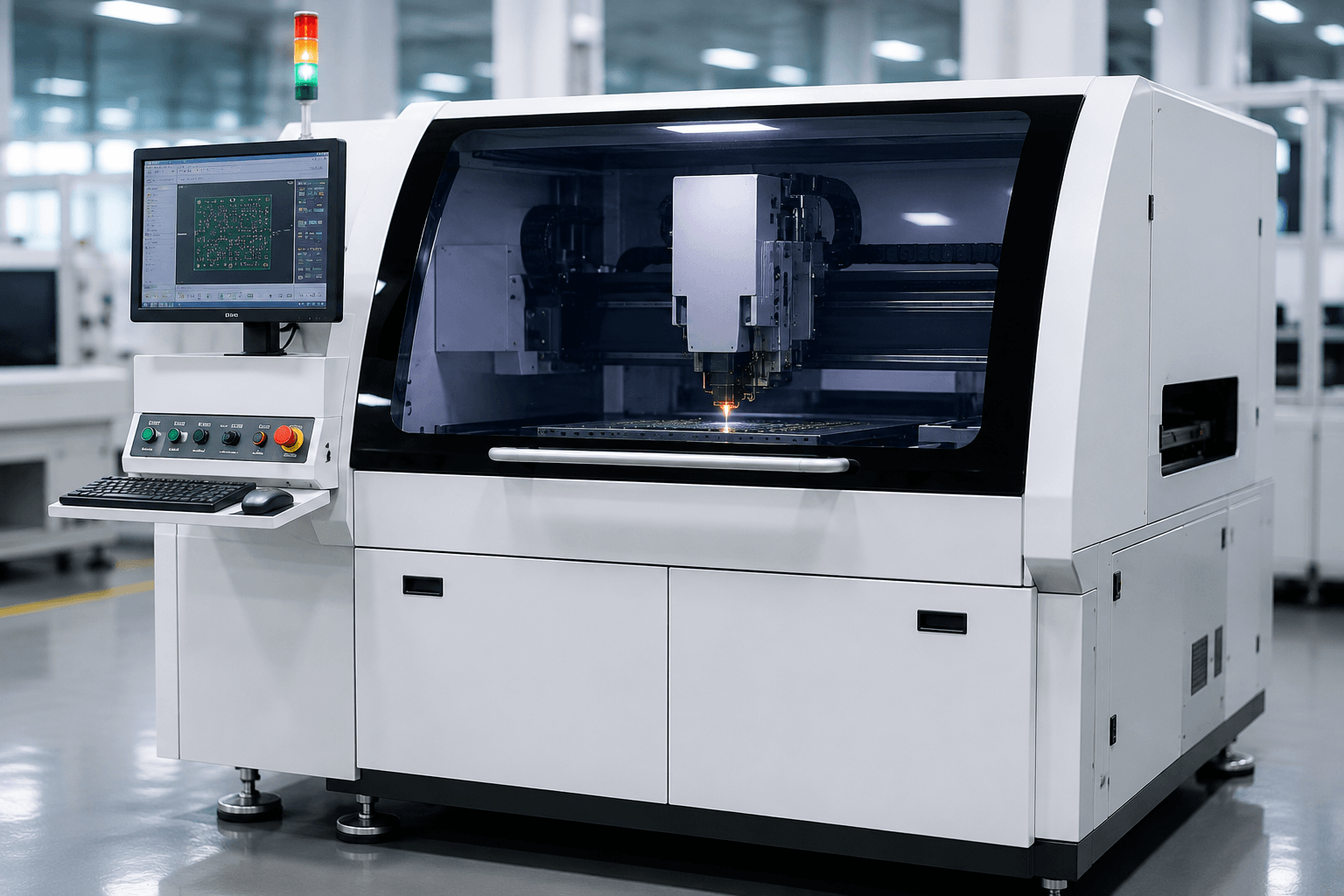

Laser Drilling Machine
High Precision drilling for HDI boards Min Hole Size : 0.075mm

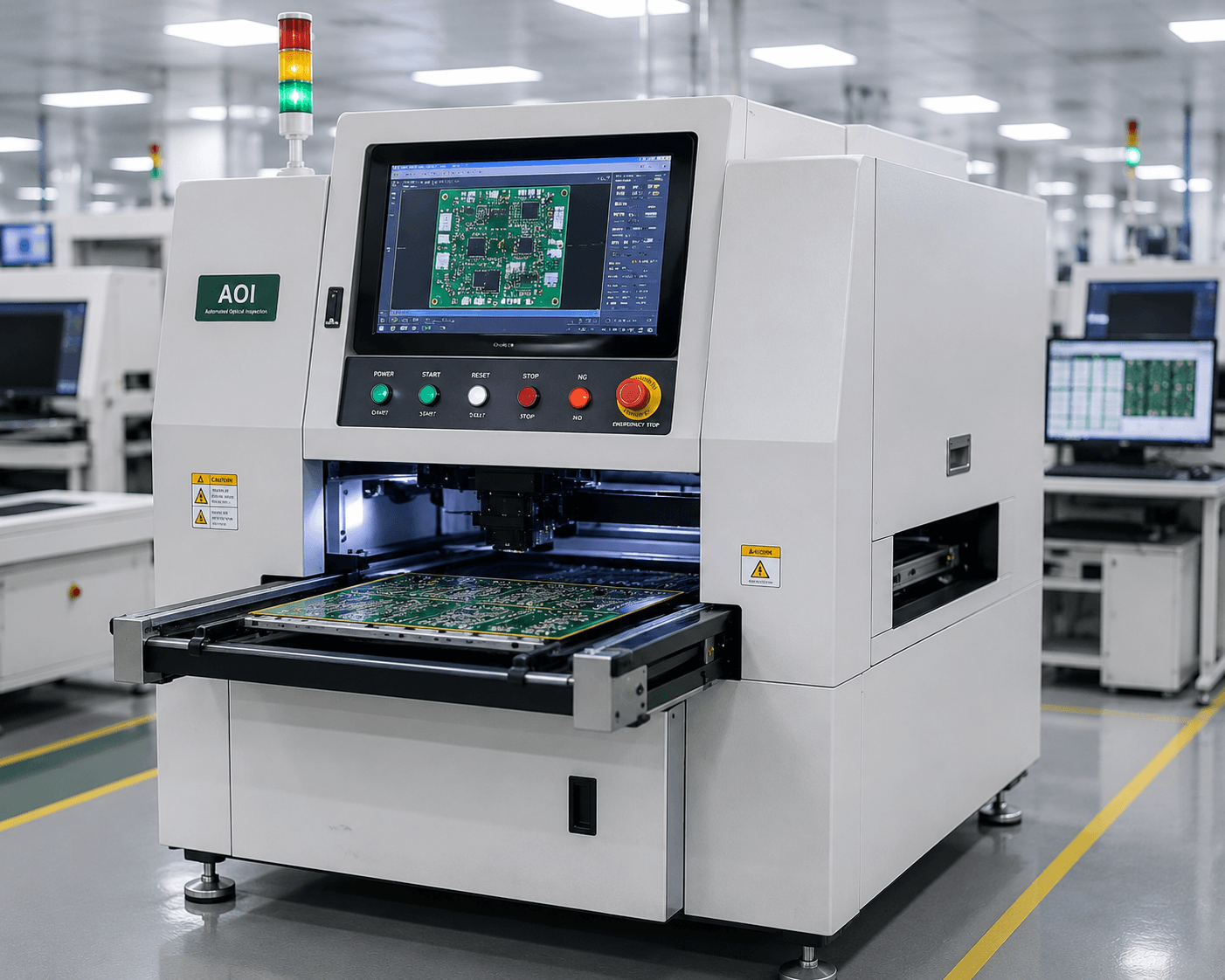

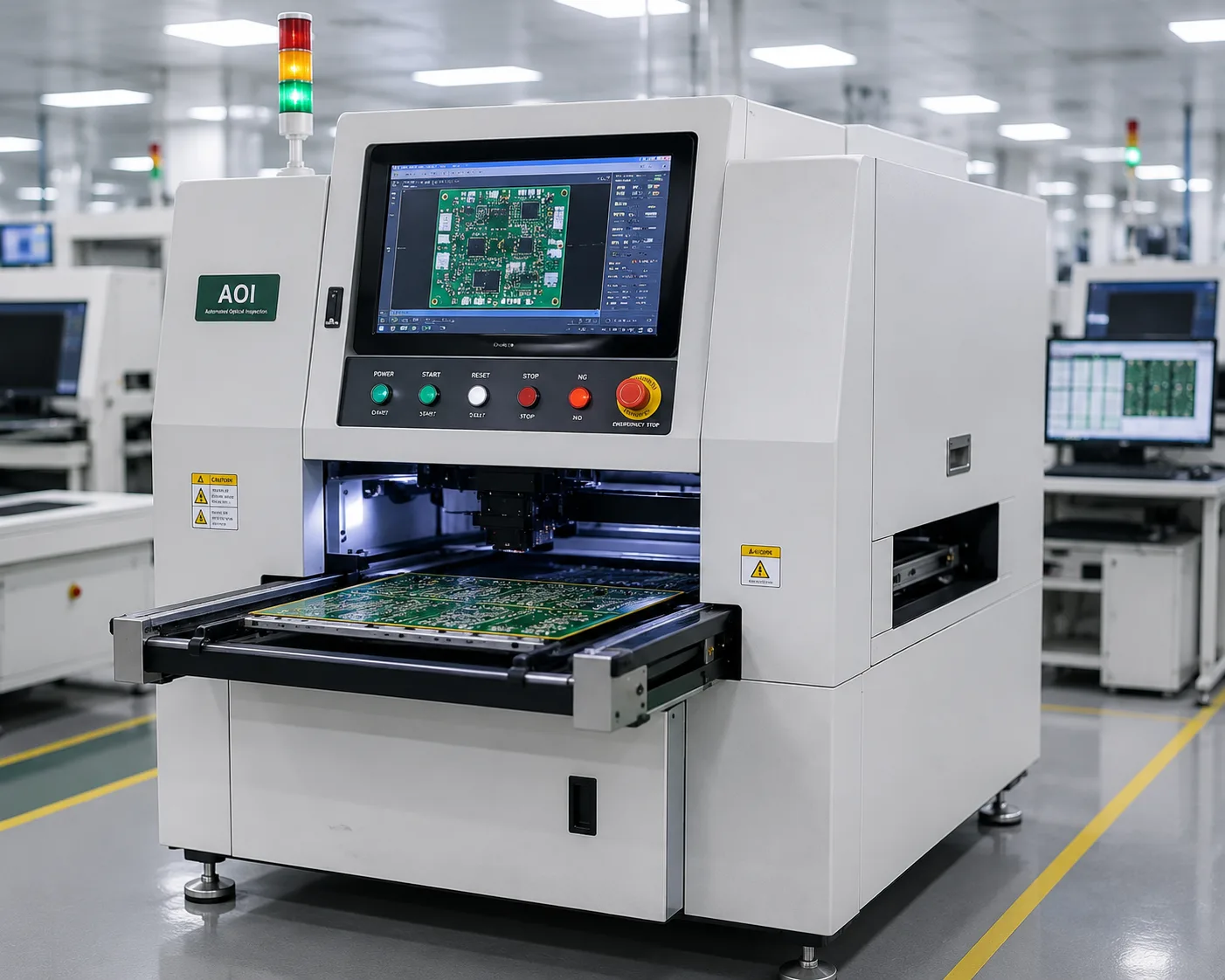

AOI Inspection Machine
AOI Automatic optical inspection for solder and component defects.

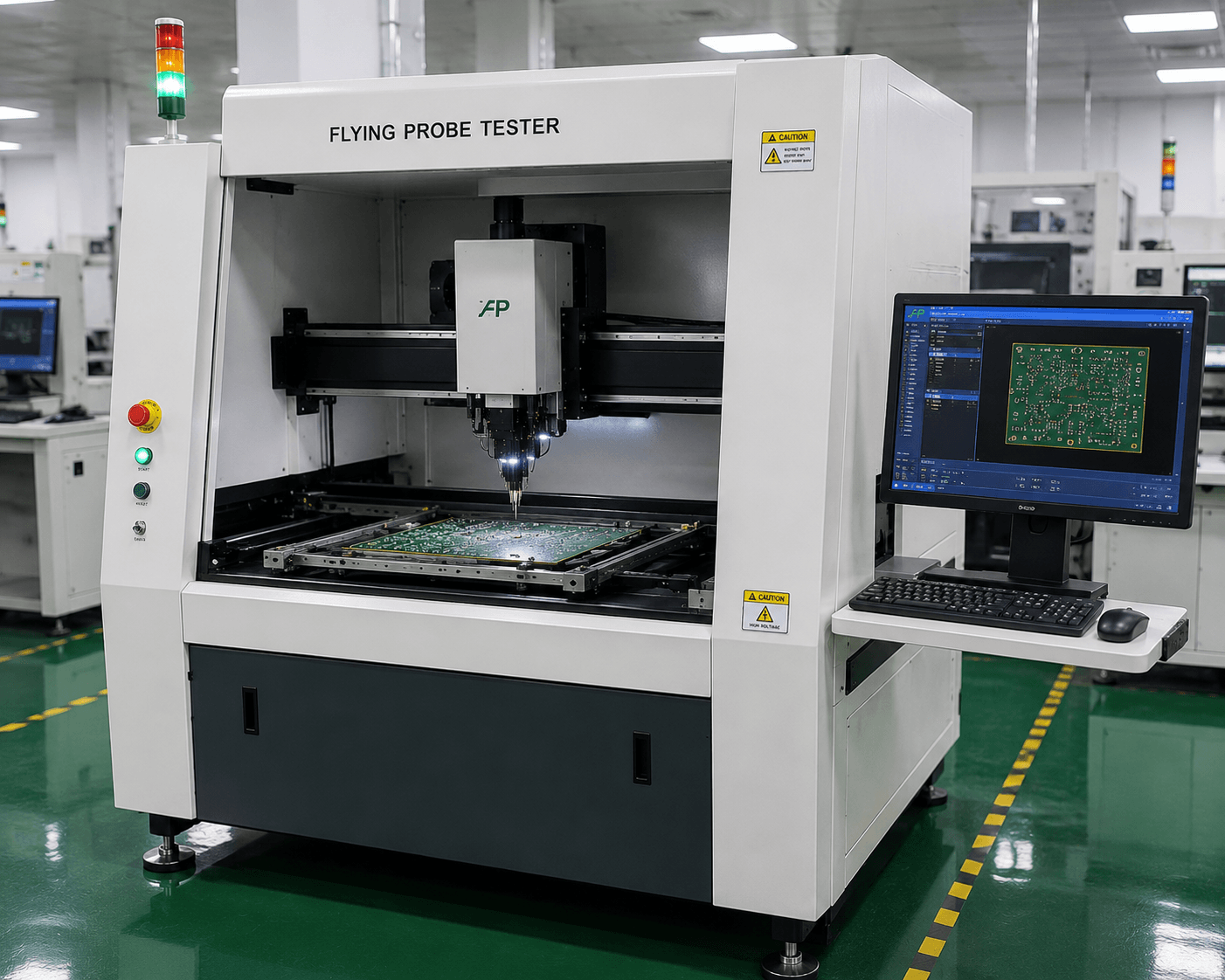

Flying Probe Tester
In circuit for prototypes and small batch PCB testing

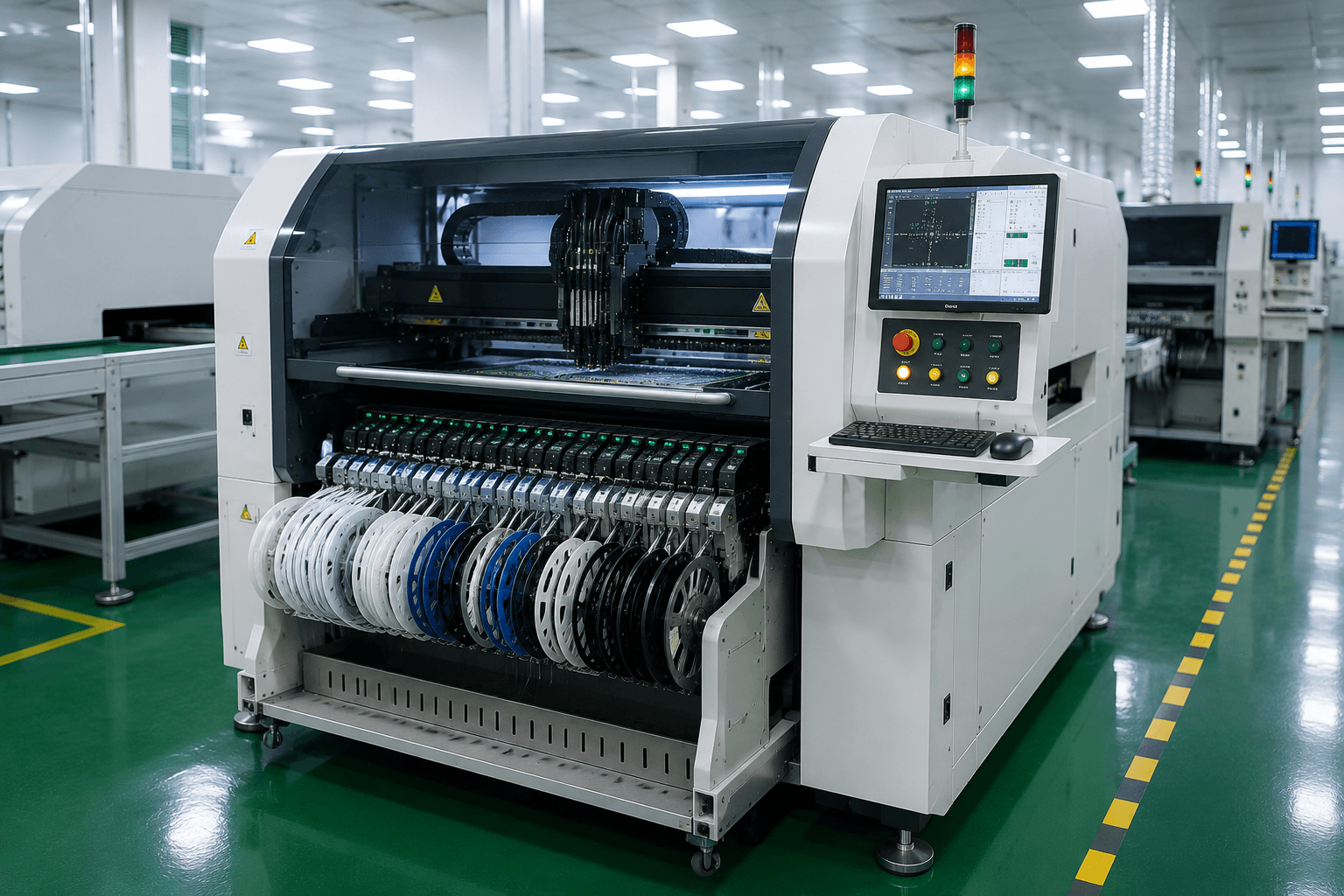

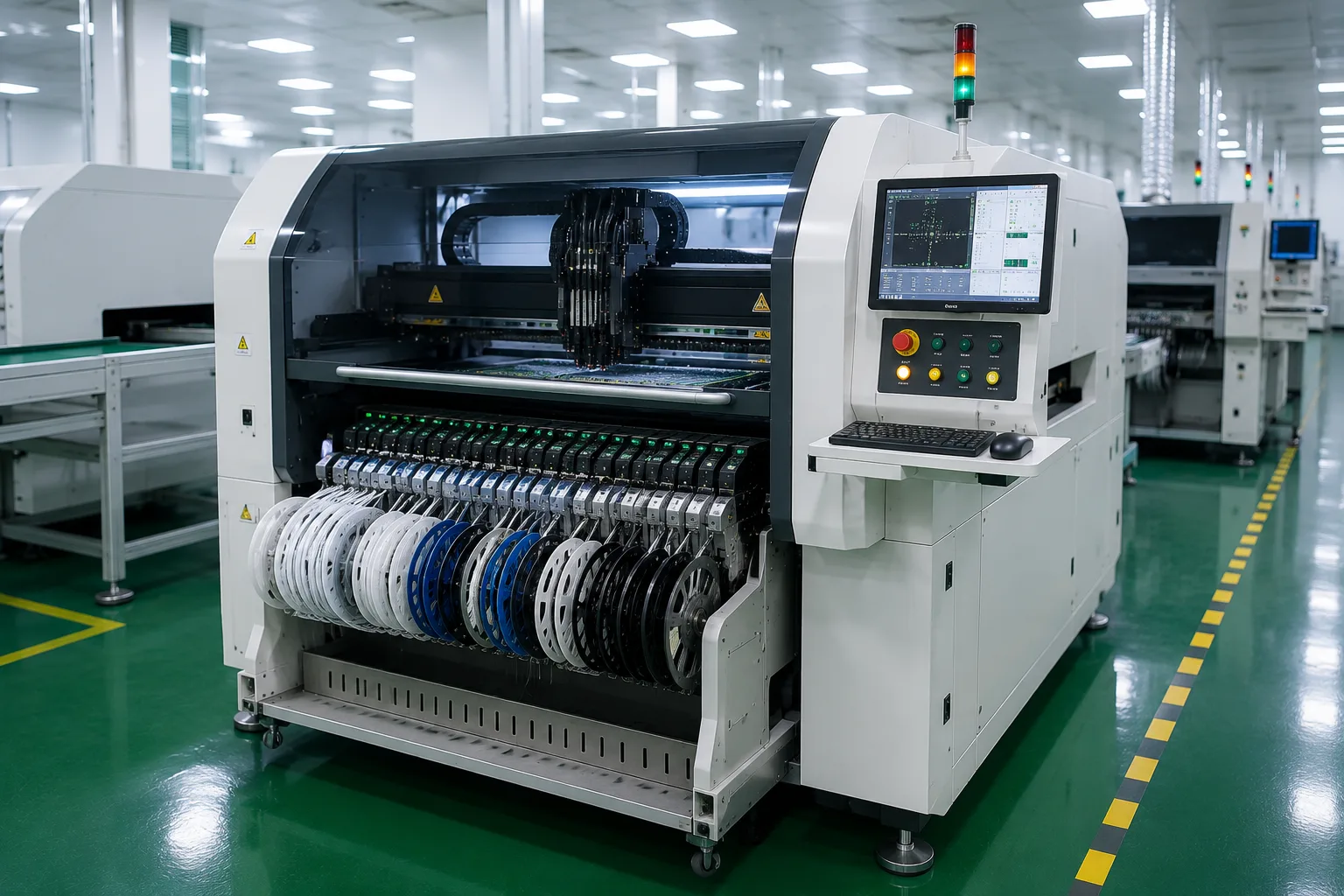

SMT Pick & Place Machine
High speed placement for accurate and efficient SMT assembly
Standards We Follow
Our quality management system complies with internationally recognized standards, ensuring every PCB and PCBA meets strict performance, reliability, and environmental requirements.
- Acceptability Standard for Electronic
- Certified Quality Management System
- Environmental Management System
- RoHS & REACH
- IPC-TM-650
Testing In Action
Ready to Start Your PCB Test
& Manufacturing Project?
Our PCB Test process ensures every circuit board meets strict quality and performance standards before delivery. From prototype verification to high-volume production, FX PCB combines advanced testing, precision manufacturing, and experienced engineering to deliver reliable PCB solutions you can trust.
