Copper Base PCB-III
Copper Base PCB-III-Back
Copper Base PCB-III-Stack up

Copper Base PCB 3

Copper Base PCB 3

Enquiry
Category Metal Base PCB
  • Description

Description

Metal Copper Base PCB Capability:

Contents show
1 Metal Copper Base PCB Capability:
2 DELIVERY TIME:
3 MAJOR SUPPLIER:
4 PROCESS-FlOW:
Items  Capability
 Board Classification Aluminum Base,Copper Base,Ceramics Base,Copper-Clad,Combined Bade Board
Material Domestic Aluminum,Domestic copper,lmported aluminum, lmported copper
 Surface Treatment HASL/ENIG/OSP/Silver
Layer Count Single-sided printed board/Double-sided printed board
 Max.Board Size 1200mm*480mm
 Min.Board Size 5mm*5mm
 Trace width/Space  0.1mm/0.1mm
 Warp and twist  <=0.5%(Thickness:1.6mm,Board Size:300mm*300mm)
 Board Thickness  0.5mm-5.0mm
 Copper Thickness  35um/70um/105um/140um/175um/210um
 Min.punching Hole 1.0mm(Board thickness below1.0mm)
 Min Hole Diameter  0.6mm
 Min.Solder Mask Opening  0.35mm

DELIVERY TIME:

Single Sided aluminum based board Double sided aluminum based board Single sided copper based board Double sided copper based board Ceramic based board
Prototype 5 Working Days 14 Working Days 9 Working Days 16 Working Days 8 Working Days
Mass Production 8 Working Days 17 Working Days 12 Working Days 19 Working Days 11 Working Days
MP in repeat order 7 Working Days 16 Working Days 11 Working Days 18 Working Days 10 Working Days

MAJOR SUPPLIER:

Supplier Material Origin
Boyu Aluminum Huizhou China
Mingrong Aluminum Shenzhen China
Naya Metal Copper Dongguan China
Shengyi Copper Clad Laminate Guangdong China
Taiyo Solder Mask Japen
Guangxin Solder Mask Guangzhou China

PROCESS-FlOW:



Contact Form

Loading

Related products

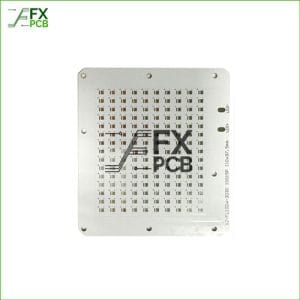

  • Ventec material PCB
