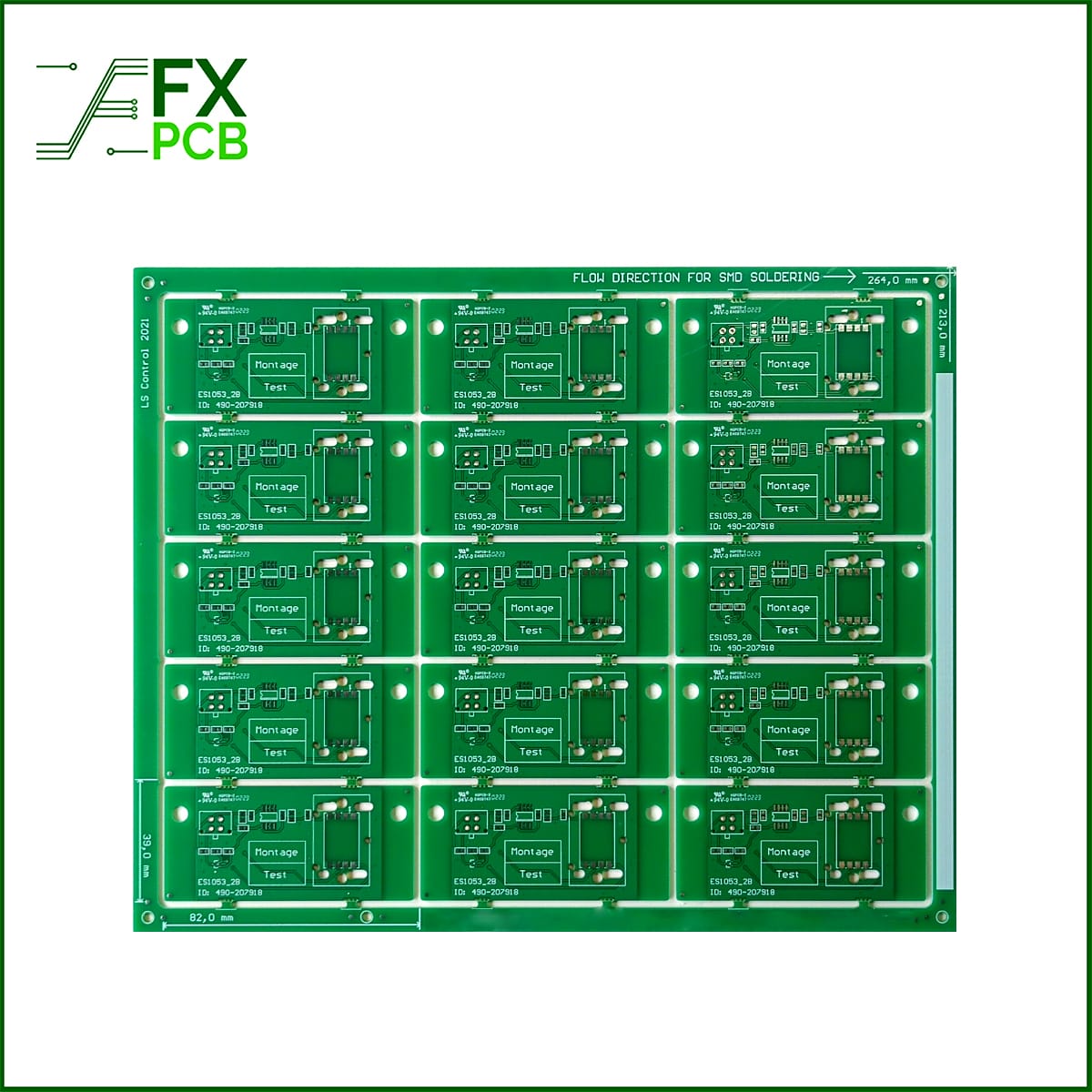

Rohs Compliant PCB Manufacture
Rohs-compliant board Fr4 material, double layer, 1oz copper thickness, 1.6mm board thickness. HAL Leadfree surface treatment.
Description
What is Rohs PCB
Contents
hide
ROHS Complaint PCB, which means that your PCB must strictly follow the EU environmental protection directive to avoid the hazardous substance: lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr6+), polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE). The constituents still have the potential to pose a hazard to human health and the environment. The PCBs that FX PCB supplied are all Rohs complaints, and we commit ourselves to be a green supply chain for our customers
PCB Capacity:
| Item | Process Capability |
| Layer Counts | 1-24L |
| Description | 2L, Fr4, 1.6mm, 1oz, 1500mmx100mm, OSP |
| Material | FR-4,Ceramic,Alu Base, Cu Base, Rogers,etc. |
| Maximum Size | 600mm x 1500mm |
| Board Outline Tolerance | ± 0.10mm |
| Board Thickness | 0.20mm—8.00mm |
| Thickness Tolerance(t ≥ 0.8mm) | ± 8% |
| Thickness Tolerance(t < 0.8mm) | ± 10% |
| Insulation Layer Thickness | 0.075mm—5.00mm |
| Minimum Line | 0.075mm |
| Minimum Space | 0.075mm |
| Out Layer Copper Thickness | 18um—350mm |
| Inner Layer Copper Thickness | 17um—210mm |
| Drilling Hole(Mechanical) | 0.15mm—6.35mm |
| Finish Hole(Mechanical) | 0.10mm—6.30mm |
| Diameter Tolerance(Mechanical) | 0.05mm |
| Registration(Mechanical) | 0.075mm |
| Aspect Ratio | 16 : 1 |
| Solder Mask Type | LPI |
| SMT Mini. Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm—0.60mm |
| Impedance Control Tolerance | ± 10% |
| Surface Finish | HASL, ENIG, Chem.Tin, Chem Silver.Flash Gold, OSP, Gold finger |
