Why the PCBA Price is so important?
PCBA or Printed Circuit Board Assembly is a critical electronic device part and will impact the overall product cost. Knowing the PCBA price can help the company make the right decisions, and optimize costs and market competitiveness.
What are the factors Affecting PCBA Price:
- PCB Costs: PCB is an essential part of the PCBA project, Your PCB design and requirements will decide its cost.
- Component Costs: what kind of components (brand, manufacturer, date, etc) and how many pieces it used in your Bom list
- SMT (Surface Mount Technology) and DIP(Dual In-line Package) cost: It depends on how many SMD (Surface Mount Device) components can be mounted. and how many hole-through components are inserted through holes in the PCB, either manually or using automated insertion machines.
- Labor Costs: The Labor cost is mostly based on the PCBA factory location, and whether the labor is experienced. The experienced Labor and lower labor costs area can always offer a more competitive PCBA price
- Volume: Larger production can reduce the cost due to economies of scale.
- Testing and program: If you need to do the test and add the program for your PCBA
- Delivery Time: There will be no additional charge for the standard delivery time, and you need to make your production plan in advance to avoid the expedited time for urgent shipping.
How to get a PCBA Quote or price from FX PCB
- PCB Files: we can accept your Gerber file, eagle file, and step file for your PCB design, and we also need detailed information for your PCB specification.
- Bill of Materials (BOM): Your BOM must include part numbers, descriptions, and manufacturers.
- Assembly Drawings: Provide clear assembly instructions and drawings.
- Testing Requirements: If you have this option, you need to send us any specific testing or testing jigs if you have
How do you decrease your PCBA price?
- Optimize Your BOM list (Bill of Materials)
- Select the Cost-Effective Components: Choose the components that meet the requirements but are much cheaper, we call them alternative components.
- Simplify PCB Design and PCB Specification: The more complex your PCB designs, the higher the price will be.
Firstly, You can reduce the PCB layers to decrease the manufacturing costs.
Secondly, ensure that your PCB design meets the PCB factory capability, like trace widths and spacing, hole size, and PCB thickness tolerance, which are all normal.
Thirdly, you can minimize the PCB size.
- Improve Manufacturing Efficiency
Efficient manufacturing processes can lead to cost savings. Consider the following:
Panelization: Panelizing smaller PCBs can reduce waste and increase manufacturing efficiency.
Automated Assembly: Automated assembly processes can lower labor costs and reduce errors.
Design for Manufacturability (DFM): Ensure your PCB design adheres to DFM principles to simplify the assembly process and reduce costs.
Choosing the Right PCBA Manufacturer
Selecting a reputable PCBA manufacturer is essential for ensuring quality and reliability. Consider the following when choosing a PCBA factory:
- Experience and Expertise: Look for manufacturers with a proven track record in producing high-quality PCBAs.
- Certifications: Ensure the manufacturer holds relevant certifications such as ISO 9001, IPC-A-610, or RoHS compliance.
- Customer Reviews: Check testimonials and reviews from previous clients.
- Technical Support: A manufacturer offering robust technical support can help address any issues quickly and efficiently.
Why Choose Our PCBA Service?
Our PCBA service stands out for several reasons:
- Competitive Pricing: We offer transparent and competitive PCBA pricing without compromising on quality.
- Quality Assurance: Rigorous testing and quality control processes ensure every PCBA meets the highest standards.
- Experienced Team: Our team of experts brings years of experience to every project, ensuring precision and reliability.
- Fast Turnaround: We understand the importance of timely delivery and strive to meet your deadlines.
Conclusion
Understanding the elements that affect PCBA price and how to obtain a precise PCBA quote can significantly impact your project’s success. By choosing the right PCBA manufacturer, you ensure that your electronic devices are built to perform reliably and efficiently. Contact us today to learn more about our PCBA services and get a customized quote tailored to your needs.
- Published in PCBA, turnkey PCB assembly, Uncategorized
No Comments
Insider Insights: How Printed Circuit Board Manufacturers Ensure Quality
Thursday, 22 February 2024
Welcome to the world of precision and reliability – the realm of printed circuit boards (PCBs). As technology advances at an unprecedented pace, the demand for high-quality PCBs has become more crucial than ever. Today, we highlighted the intricacies of PCB manufacturing, exploring the meticulous processes undertaken by industry leaders like FX PCB to ensure unparalleled quality in printed circuit board assembly.
Precision from the Ground Up: Printed Circuit Board Manufacturers Revealed
Understanding PCB Manufacturing: The unsung hero – the printed circuit board- is at the core of electronic devices. These intricate boards are the foundation for the electronic components that power our everyday gadgets. To achieve perfection, the journey starts with cutting-edge technology and a commitment to precision.
Materials Matter: Printed circuit board manufacturers leave no room for compromise when it comes to materials. At FX PCB, every board is crafted using top-tier materials, ensuring durability and reliability. High-quality substrates, copper layers, and solder masks contribute to the longevity and performance of the final product.
The Manufacturing Process: A Symphony of Precision
- Design and Prototyping: Before a single circuit is etched, meticulous design and prototyping occur. Talented engineers at FX PCB leverage state-of-the-art software to create blueprints that translate into high-performance PCBs. Prototyping allows for thorough testing, guaranteeing the design’s viability and functionality.
- Etching and Layering: The heart of the manufacturing process lies in the etching and layering stages. FX PCB employs cutting-edge equipment to etch circuit patterns precisely onto the copper layers. This process ensures optimal conductivity and adherence to the design specifications. Layering is executed precisely, creating a compact and efficient circuit layout.
- Soldering and Assembly: The assembly line at FX PCB is a testament to precision engineering. Highly skilled technicians oversee the soldering process, using advanced techniques to affix components to the PCB. Automated assembly ensures consistency and accuracy, reducing the margin for error.
Quality Assurance: Beyond Industry Standards
- Robust Testing Protocols: Printed circuit board manufacturers at FX PCB understand the critical role of quality assurance. Rigorous testing protocols are implemented at every stage of production. From automated optical inspection (AOI) to in-circuit testing (ICT), each board undergoes comprehensive evaluations to identify and rectify any potential issues.
- Adherence to Industry Standards: FX PCB is committed to delivering products that surpass industry standards. The company adheres to stringent quality control measures, ensuring compliance with international regulations and certifications. This dedication to excellence sets FX PCB apart as a trusted partner in electronic manufacturing.
Upgrading the Standard of Excellence in PCB Manufacturing!
It is impossible to overestimate the importance of printed circuit board manufacturers in the ever-changing world of technology. FX PCB’s commitment to precision, quality materials, and rigorous testing processes exemplifies the company’s dedication to excellence. As the demand for advanced electronic devices continues to surge, FX PCB stands at the forefront, crafting PCBs that serve as the backbone of innovation.
The next time you power up your device, remember the intricate craftsmanship that ensures its seamless functionality – a testament to the unwavering commitment of printed circuit board manufacturers like FX PCB.
- Published in PCBA
Advanced Soldering Materials for PCB Assembly
Wednesday, 14 June 2023
Advanced Soldering Materials for PCB Assembly
Table of Contents
With the advent of increasingly intricate and compact electronic devices, the demand for sophisticated soldering materials for Printed Circuit Board Assembly (PCBA) has skyrocketed. The extensive miniaturization of electronic devices necessitates soldering materials that can withstand the challenges of PCB assembly while ensuring robust performance, longevity, and overall device integrity. This article delves into the fascinating realm of advanced soldering materials and their impact on the evolving landscape of PCBA.
Traditionally, soldering has relied on alloys like tin-lead. The industry has switched towards lead-free alternatives due to the necessity to comply with environmental requirements, particularly the Restriction of Hazardous Substances (RoHS) directive. The most widely accepted alternative today is the tin-silver-copper (SAC) alloy. Yet, as device dimensions shrink and complexity escalates, the search for more efficient materials is relentless.
Our Recommended Fast Turnaround PCBA
As a fast turnaround or quick-turn PCB Assembly Manufacturer /factory in Shenzhen China, FX PCB is able to fulfill orders in a fast delivery time with our modern technologies used in production.
Our factory carries out the assembly and installation of printed circuit boards to order. During the development and manufacturing process, constant quality control is carried out.
We strictly follow your Gerber file and Bom list for your fast turnaround or quick turn PCBA projects, and we will also be glad to suggest you the alternative for your passive components to decrease your cost, but all replacement components need you to approve and make the final decision on whether you want to use them.
Advanced Soldering Materials
Innovations in the sphere of soldering materials have given birth to a number of promising substances designed to answer the emerging challenges of PCBA. Two particularly intriguing advancements are nano-solders and composite solders.
Nano-solders
Nano-solders are a new breed of soldering materials that contain nanoparticles. These nanoparticles dramatically modify the microstructural characteristics of the solder joint, resulting in improved mechanical properties, better wetting characteristics, and lower melting temperatures.
A comprehensive study of nano-solders involves observing the interactions at a microscopic level. This knowledge is vital for understanding their behavior during the soldering process and subsequently their performance in PCB assemblies. For instance, the addition of ceramic nanoparticles to a solder matrix can improve its resistance to electromigration – a critical problem in high-density PCBs.
Composite Solders
Composite solders are another revolutionary development in the PCBA industry. They consist of traditional solder alloys, such as SAC, combined with other materials (usually in particulate form) to enhance certain properties. For example, the addition of nickel particles to a SAC solder can significantly improve the solder’s shear strength.
Composite solders bring forth the possibility of tailoring solder properties to match specific PCBA requirements. This adaptability makes them a promising option for high-performance applications, including aerospace and medical devices.
High-Reliability Alloys
For applications where reliability under extreme conditions is a must, such as aerospace, automotive, or military electronics, high-reliability alloys have been developed. These include the tin-antimony (SnSb) and tin-bismuth-silver (SnBiAg) alloys. The latter is a low melting point alloy, particularly suitable for delicate, heat-sensitive components.
Low-Temperature Alloys
The demand for low-temperature alloys, which can solder at decreased temperatures to protect heat-sensitive components, has grown in tandem with the miniaturization of electronic equipment. Tin-bismuth (SnBi) alloys, for instance, have gained popularity due to their lower melting point compared to traditional SAC alloys.
Indium Alloys
Indium alloys are another category of advanced soldering materials that offer unique properties. Indium-based solders have excellent thermal and electrical conductivity and are particularly useful when the solder joint needs to be a good conductor. Moreover, they can resist thermal fatigue better than many other solders, making them a top choice for high-temperature applications.
Micro-alloyed Solders
Micro-alloyed solders are those that incorporate a small amount of a distinct element to the base alloy to improve its properties. This category includes the likes of doped SAC alloys, where trace elements like manganese or nickel are added to the SAC base. These elements improve the drop-shock resistance and can also mitigate the occurrence of tin whiskers.
Bi-Ag Alloys
One of the rising stars of the advanced soldering materials sector is the bismuth-silver (BiAg) alloy system. This system is receiving much attention as an alternative to high-lead soldering alloys, which are exempt from RoHS but still pose an environmental hazard. BiAg alloys exhibit high thermal and electrical conductivity, good wettability, and high shear strength. They offer a greener, yet high-performing option for soldering applications demanding superior mechanical and thermal reliability.
Factors Impacting the Choice of Soldering Materials
A significant element to consider is the solder’s melting temperature. The working environment’s thermal conditions should align with the solder’s melting point to avoid premature failure. Another vital aspect is the material’s mechanical properties. A PCB in a high-vibration environment, for instance, needs a solder with high shear strength to ensure the joints remain secure.
Towards a Sustainable Future
Despite the dazzling prospects offered by these advanced materials, there remains an elephant in the room – sustainability. The electronics industry, including PCBA, must grapple with the environmental implications of their processes and products. Thus, finding sustainable soldering materials is as crucial as improving performance metrics.
For instance, the incorporation of recycled materials into solders is an emerging trend. Some companies are exploring the potential of using recycled tin and other metals in solder alloys to reduce the environmental impact.
The Future of PCBA with Advanced Soldering Materials
The future of PCB Assembly, with advanced soldering materials, paints a vivid picture. The integration of nano and composite solders promises not only better device performance but also greater customization, fitting the specific needs of various applications.
Further, the ongoing research and development in this field open doors to a world of potential. PCBA could see breakthroughs in reliability, miniaturization, and sustainability, all thanks to these cutting-edge soldering materials.
PCBA has come a long way from its humble beginnings, with soldering technology integral to this journey. As we stand on the precipice of a new era, advanced soldering materials hold the promise of propelling PCBA into an exciting future filled with endless possibilities.
While the challenges are significant, the potential rewards are greater. As we continue to explore these materials, we can expect to see a profound impact on the PCBA industry. Here’s to the future of PCBA and the soldering materials that will lead us there!
Bottom Line
As we look toward the future of PCBA with advanced soldering materials, it’s clear that the path forward requires innovation, expertise, and dedication to excellence. And who better to navigate that path than FX PCB?
At FX PCB, we are leading the way in incorporating these advanced soldering materials into our PCB assembly process. We understand the nuances of these cutting-edge materials and how to harness their unique properties for optimal performance.
Peter Gong
I am Peter Gong. I have been working in PCB and PCBA industry for 15+ years now. I have been a part of the PCB revolution with my dedication to circuit board technologies and creative ideas. I write in FX PCB to impart my knowledge on PCB and PCBA for all circuit board lovers, manufacturers, and users.
Our Recommended Products for You
- Published in Informative, PCBA
9 Must Know PCB Assembly (PCBA) Equipment
Tuesday, 13 June 2023
9 Must Know PCB Assembly (PCBA) Equipment
As the lifeblood of numerous modern devices, printed circuit board assembly (PCBA) has revolutionized technology as we know it. PCBs, or printed circuit boards, are complex electrical pathways that breathe life into your phones, computers, and a whole gamut of electronics. However, the quality of such complex gadgets depends on the machinery employed in their construction. Let’s uncover nine key types of PCBA equipment vital to the process.
Table of Contents
Our Recommended Ceramic PCB
FX PCB can provide the ALN(Aluminum oxide) and AIO203(Aluminum Nitride) Ceramic PCB, we can make ENEPIG, ENIG, Immerison silver surface,you can check the material datesheet and our capability from the below tables.
Ceramic PCB is actually made of electronic ceramic materials and can be made into various shapes.
The ceramic circuit board has the following characteristics: high-temperature resistance, high electrical insulation, low dielectric constant, low dielectric loss, high thermal conductivity, good chemical stability, and the thermal expansion is almost can be coefficients of components.
Order Now Ceramic PCB
1. Screen Printer
A good journey begins at the base. The initial step in PCB assembly is applying solder paste to the board, and for that, we need a screen printer. With its metal stencil, a screen printer ensures the solder paste is applied uniformly and precisely where required. Without this, the components wouldn’t stick to the board or form good electrical connections. It’s an essential part of PCBA, without which your devices might end up being just a jumble of parts.
2. Pick and Place Machine
Next in line, we have the pick and place machine—a true marvel of precision and speed. This device automatically picks electronic components from a feeder and accurately places them on the solder paste on the PCB. Considering the intricate design and minute size of many components, this equipment requires exceptional precision and reliability. Just imagine; a standard PCBA can have hundreds or even thousands of components, each of them having their rightful place on the board.
3. Reflow Oven
Ever baked a batch of cookies? The reflow oven does something similar, just not as delicious. After the components are meticulously placed on the board, the entire assembly goes into the reflow oven. Here, the solder paste melts, or “reflows,” effectively bonding the components to the PCB. This intricate baking process is critical as it dictates the quality and durability of the final assembly.
4. Automatic Optical Inspection (AOI) Machine
In any production process, quality assurance is indispensable, and that’s where our fourth equipment, the AOI machine, comes in. After the soldering process, the AOI scans the PCB for any potential defects. These can range from incorrect component placement to insufficient soldering.
5. Wave Soldering Machine
The wave soldering machine is a tried-and-tested veteran of PCBA. It’s primarily used for through-hole component soldering, a type of assembly where components are mounted by inserting leads into holes drilled into the PCB. The machine works by sending a “wave” of molten solder that washes over the bottom of the board, soldering the leads in the process. This method, although a bit old-school, is efficient and effective for certain types of PCBs.
6. Solder Paste Inspection (SPI) Machine
SPI machines evaluate the quality of the solder paste application after the screen printing phase. With the help of high-precision 3D sensors, they detect any discrepancies in the volume, area, and height of the solder paste deposits. This meticulous attention to detail allows for the early identification of defects before the components are placed, thereby preventing potential complications further down the line.
Given the tiny margins of error in PCB assembly, the role of the SPI machine cannot be overstated. It’s more than simply a piece of hardware; it plays a crucial role in preventing errors in the PCBA process and ensuring the highest possible quality of the end product.
7. X-Ray Inspection Machine
Some defects are not visible to the naked eye, or even the AOI. Enter the X-Ray Inspection machine. This equipment enables a non-destructive method to view solder joints under the surface of the board. It’s like giving the PCB a CT scan to check the integrity of solder joints, especially for components like BGA (Ball Grid Array) that have hidden connections underneath.
8. Rework Stations
Rework stations are equipped with advanced tools and technology to perform precise desoldering and resoldering of components that need to be replaced or removed. Their precision is of paramount importance, as they need to extract components without damaging the PCB or surrounding elements.
Moreover, rework stations have a critical role in managing fine pitch components—those with leads too close together for conventional soldering tools. By efficiently handling these delicate components, rework stations ensure they do not become a bottleneck, thereby preserving the overall speed and efficiency of the assembly process.
9. PCB Router Machine
Once all the components have been successfully placed, soldered, inspected, and reworked if necessary, the assembly process enters its final stage. Now, it’s time to separate individual PCBs from the large panel they were assembled on.
Imagine the PCB Router machine as a skilled surgeon performing a delicate procedure. It meticulously cuts the panels, freeing the individual boards while ensuring clean edges and minimizing potential damage to the finished product. This is achieved through a process called ‘routing,’ where high-speed spindles precisely mill the panel along the pre-determined paths.
The router machine’s accuracy plays a crucial role in the final presentation of the product. A slip-up here could damage the meticulously assembled PCBs. Thankfully, these machines boast a high degree of precision, ensuring that the fruits of the entire PCBA process are preserved in their prime condition, ready for their role in powering our modern world.
Bottom Line
Remember, a good PCBA process is like a well-conducted orchestra. Each instrument, or rather equipment, plays its role at the right time, leading to a harmonious symphony of technology that powers our modern world.
So, you’ve been introduced to the remarkable world of PCB Assembly equipment, each playing its pivotal role in bringing our beloved electronic devices to life. It’s an intricate dance of precision and quality, with no room for error. Now, where can you find such exceptional quality PCBA?
Well, look no further! At FX PCB, we’re not just familiar with these pieces of equipment; we’re experts at using them. With years of experience under our belt, we know how to orchestrate the PCBA process to deliver PCBs of exceptional quality and reliability.
We bring the same degree of dedication, precision, and quality control to every job, big or small. Are you ready to bring your electronics project to life? Reach out to us at FX PCB, and let us show you what world-class PCBA looks like.
Peter Gong
I am Peter Gong. I have been working in PCB and PCBA industry for 15+ years now. I have been a part of the PCB revolution with my dedication to circuit board technologies and creative ideas. I write in FX PCB to impart my knowledge on PCB and PCBA for all circuit board lovers, manufacturers, and users.
- Published in PCBA
The Key Difference Between PCB And PCBA: What You Need To Know
Tuesday, 13 April 2021
The Key Difference Between PCB And PCBA: What You Need To Know
Modern-day smartphones are doing wonders with the developed camera, higher refreshing rate, and hardware improvement. Similarly, contemporary warfare has seen tremendous use of drone helicopters to spy on enemies.
All these have been made possible because of the advancement of PCB and PCBA. These two technologies have changed the communication, electronics, military, medical device, etc. industries dramatically.
Yet we found that many people consider the PCB and PCBA the same thing. Hence, we decided to discuss the difference between PCB and PCBA in a way so everyone can understand it.

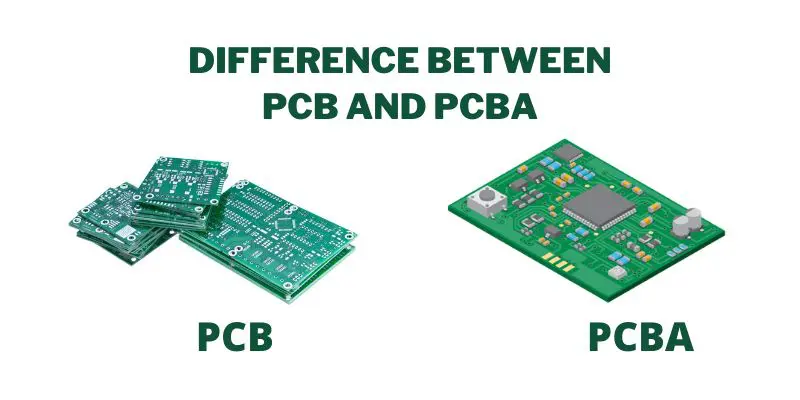

PCB is a bare circuit board consisting of only the signal transmitting and heat dissipation substrate. The PCBA, on the contrary, consists of different electronics components including ICs, resistors, etc.
Table of Contents
Our Recommended PCB
FX PCB can provide the ALN(Aluminum oxide) and AIO203(Aluminum Nitride) Ceramic PCB, we can make ENEPIG, ENIG, Immerison silver surface,you can check the material datesheet and our capability from the below tables.
The ceramic circuit board has the following characteristics: high-temperature resistance, high electrical insulation, low dielectric constant, low dielectric loss, high thermal conductivity, good chemical stability, and the thermal expansion is almost can be coefficients of components.
Ceramic PCB is actually made of electronic ceramic materials and can be made into various shapes.

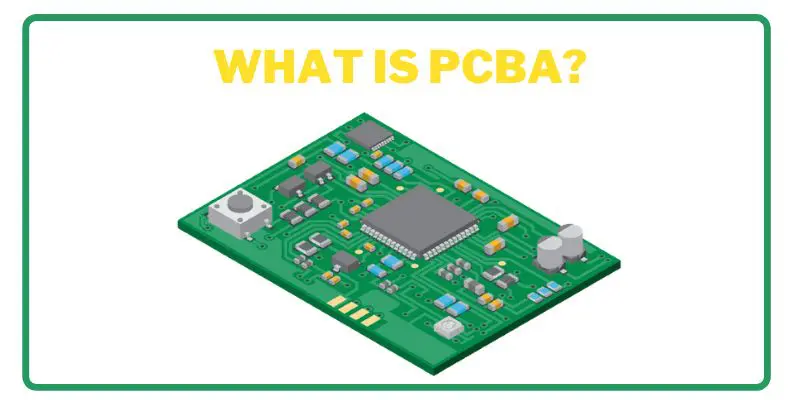

What Are PCB and PCBA?
