PCBA Conformal Coating: Your Ultimate Guide to Protecting Electronics

At SFX PCB, we believe your printed circuit board assemblies (PCBAs) deserve armor against the elements. Conformal PCBA coating isn’t just a technical step; it’s the shield that ensures your devices thrive in deserts, factories, or even underwater.

In this comprehensive guide, we’ll dive deep into how PCBA conformal coating works, why it matters, and how SFX PCB tailors solutions to keep your electronics bulletproof. Let’s get started!

Part 1: The PCBA Coating Process Layered Protection, Step by Step

Imagine painting a masterpiece: every brushstroke matters.PCBA Conformal coating is similar in precision and ensures reliability. Here’s how SFX PCB perfects the process:

1. Pre-Coating Prep: The Foundation of Success

• Deep Cleaning: We start by scrubbing away dust, flux residues, and oils using specialized solvents. Think of it as prepping a wall before painting. Skip this, and the coating won’t stick.
• Pre-baking: Moisture is the enemy. We bake PCBAs at 60°C (140°F) for 30–40 minutes to eliminate hidden humidity.

2. Different ways for PCBA Coating

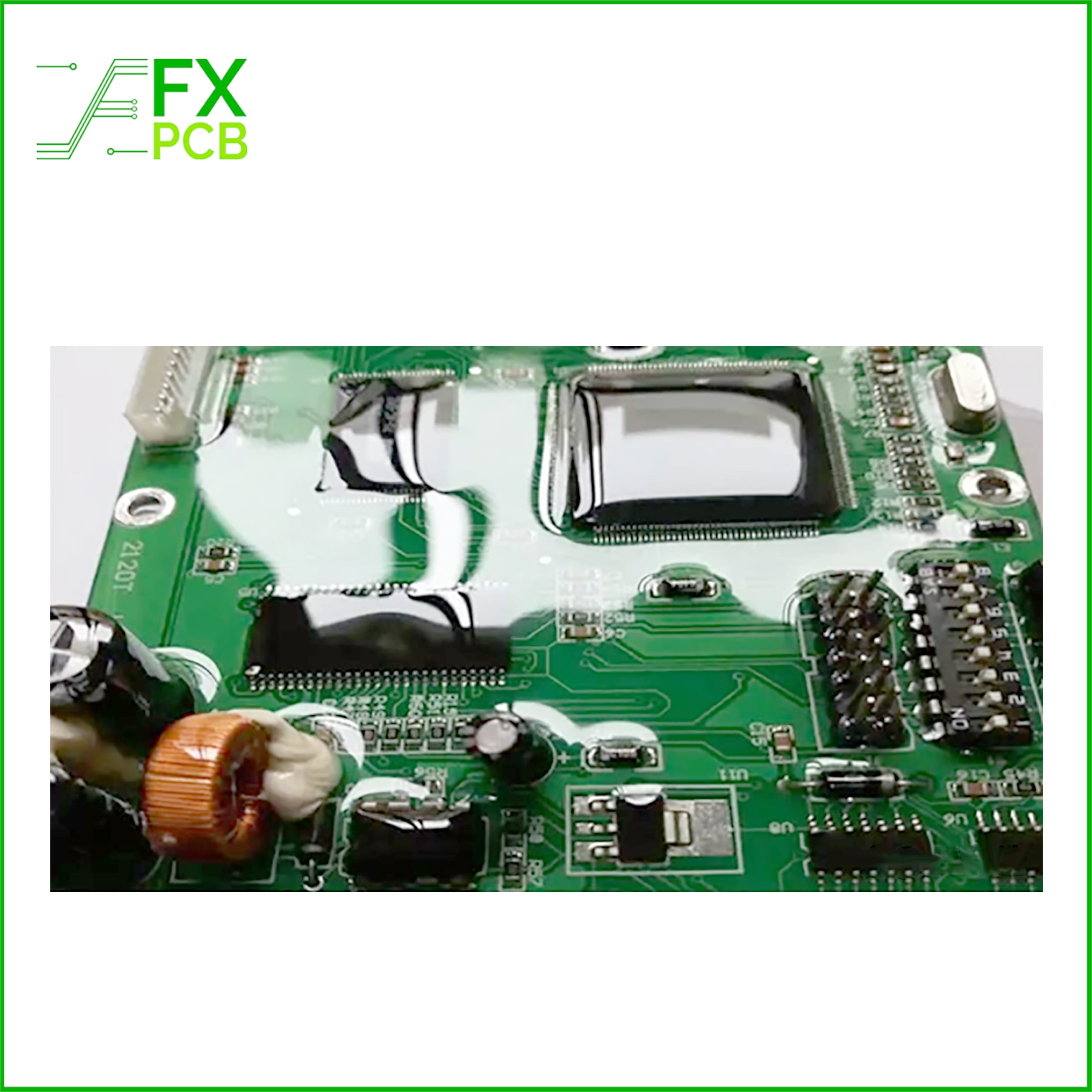

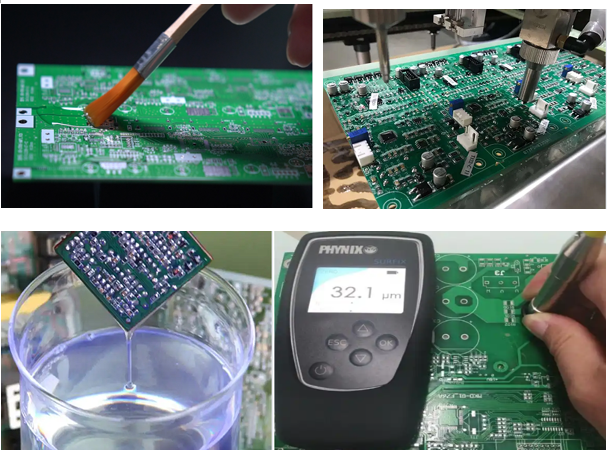

• Spraying (The Speedster):

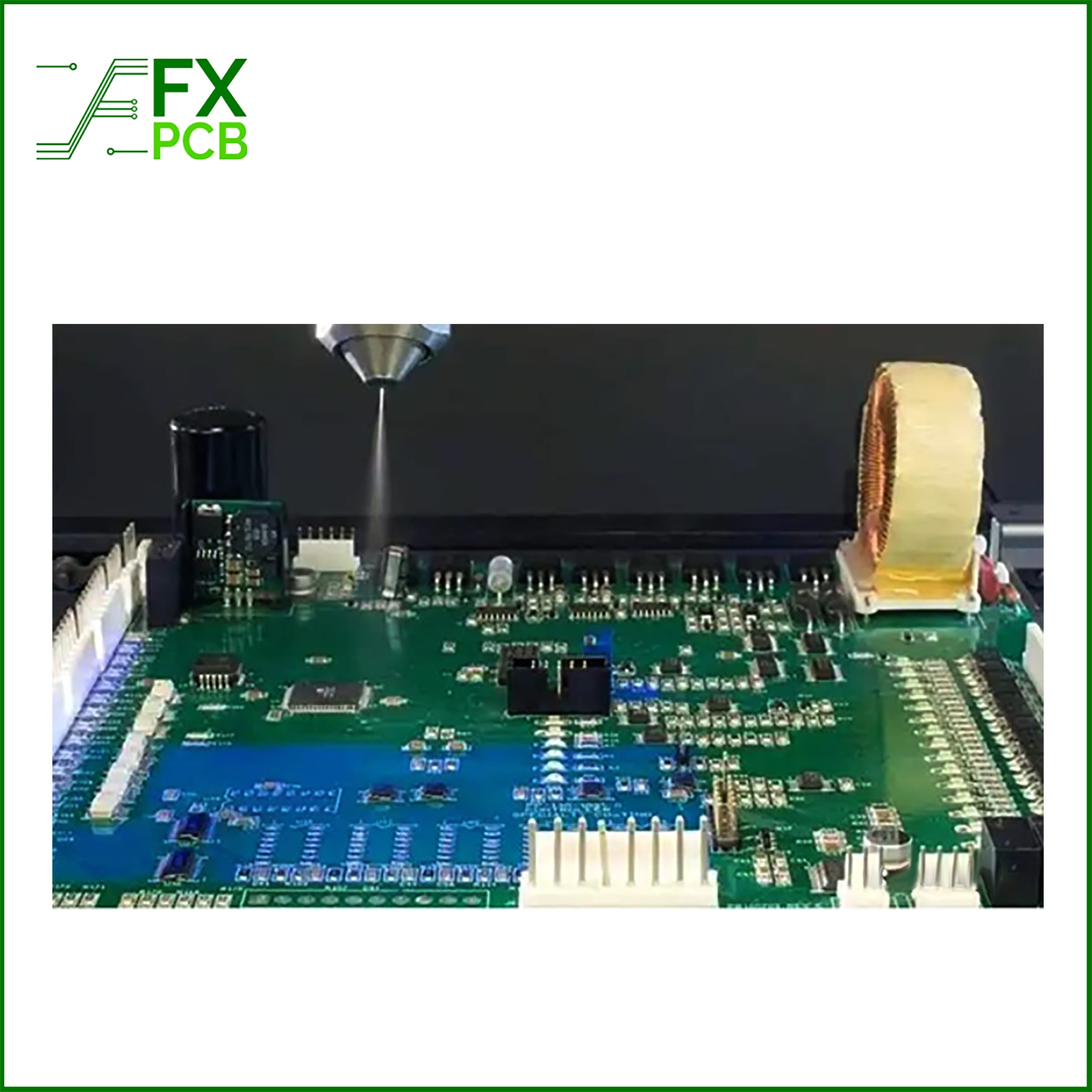

  • Uses automated spray systems for mass production.
  • Pros: Uniform layers, fast turnaround.
  • Cons: Requires controlled environments to avoid overspray.
• Dipping (The Classic):
  • PCBAs are submerged in coating material.
  • Pros: Simple for standard shapes.
  • Cons: Risk of pooling or uneven edges.
• Brushing (The Artisan):
  • Hand-applied for prototypes or repairs.
  • Pros: Precision on tiny components.
  • Cons: Time-intensive.
• PCBA Selective Coating (The Surgeon):
  • Robots mask sensitive areas (connectors, sensors) and coat only critical zones.
  • Ideal for mixed-technology boards.

3. Quality Control: No Room for Error

• Thickness Checks: Using laser measurement tools, we ensure coatings stay within 0.05mm–0.15mm. Too thin? Poor protection. Too thick? Risk of cracking.
• Visual Inspection: Under UV light, we spot bubbles, drips, or gaps defects that could lead to failures.

4. Curing: Locking in Protection

• A final bake at 60°C solidifies the coating. For UV-curable coatings, we use specialized lamps.

Part 2: Why Conformal Coating is Non-Negotiable

Modern electronics face brutal environments. Here’s how coatings save the day:

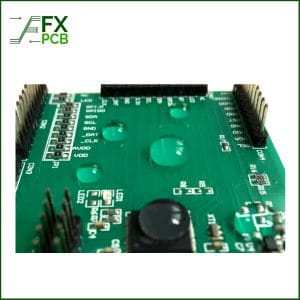

• Moisture & Condensation:
  • Without coating, humidity creeps into circuits, causing corrosion or short circuits. Example: A fitness tracker fails after a sweaty workout.
  • Solution: Acrylic coatings block moisture while staying flexible.
• Salt Spray & Pollution:
  • Coastal or industrial areas bombard PCBAs with corrosive particles.
  • Example: A traffic light control board rusts within months near the ocean.
  • Solution: Polyurethane coatings resist salt and chemical attacks.
• Dust & Debris:
  • Dust clogs cooling vents or bridges conductive traces.
  • Example: A mining sensor overheats due to dust buildup.
  • Solution: Silicone coatings repel particles and dissipate heat.
• Temperature Extremes:
  • From freezing tundras to scorching engines, coatings prevent thermal stress.
  • Example: An automotive control module cracks in winter.
  • Solution: Silicone handles -50°C to 200°C swings.
• Chemical Exposure:
  • Factories, labs, and vehicles expose PCBAs to solvents, fuels, and acids.
  • Example: A factory robot’s PCB corrodes after a chemical spill.
  • Solution: Epoxy coatings create a chemical-proof barrier.

Part 3: PCBA Conformal Coating Types Pros, Cons, and Perfect Matches

Choosing a PCBA coating is like picking a sports car: performance depends on the terrain.

Type	Best For	Pros	Cons
Acrylic	Smart home devices	Fast drying, UV-resistant, easy rework	Weak against solvents
Polyurethane	Automotive systems	Chemical/abrasion resistance	Long cure time (24+ hrs)
Silicone	High-temperature zones	Handles extreme heat, flexible	Poor adhesion; needs primer
Epoxy	Heavy-duty industrial	Rock-hard protection, chemical-proof	Brittle; no rework possible

Case Study:
A drone manufacturer needed coatings for PCBAs exposed to monsoons and UV rays. SFX PCB recommended silicone for heat dissipation and acrylic for quick rework during prototyping. Result: 30% fewer field failures.

Part 4: SFX PCB’s Best Practices Beyond the Basics

We don’t just follow standards; we set them. Here’s our playbook:

1. Environmental Controls

• Temperature: Keep workshops above 16°C; cold slows curing.
• Humidity: Below 75% to prevent coating blushing (hazy layers).
• Cleanliness: HEPA filters and anti-static floors eliminate dust.

2. Safety First

• Operators wear nitrile gloves, respirators, and goggles. Silicone fumes? Not on our watch.

3. Post-Coating Care

• Curing: Follow the coating’s “recipe,” e.g., UV coatings need precise light exposure.
• Rework: Use mild solvents (like isopropyl alcohol) to remove coating without damaging components.
• Storage: Stacking PCBAs? Never! Use anti-static trays to prevent static discharge.

4. Testing & Certifications

• SFX PCB is an ISO9001 certificated supplier to supply the PCBA with different types of  coatings
• We simulate extreme conditions: salt spray chambers, thermal cycling, and bend tests.

Part 5: Industry-Specific Solutions

1. Automotive:

• Coatings must survive engine heat, vibrations, and oil exposure. Polyurethane is a go-to.

2. Aerospace:

• PCBAs in satellites need lightweight, radiation-resistant coatings. Silicone wins here.

3. Medical Devices:

• Coatings must be biocompatible and withstand sterilization. Acrylic fits the bill.

4. Consumer Electronics:

• Water-resistant wearables demand thin, flexible coatings. UV-curable acrylics shine.

Why SFX PCB? More Than a Supplier: We’re Your Partner

• Customization: We tweak coatings for your environment, whether it’s a desert solar farm or a submarine.
• Speed: Rush orders? Our automated spray lines deliver in 48 hours.
• Sustainability: Low-VOC coatings and recycling programs reduce environmental impact.

Got a Tough Environment? We’ve Got a PCBA Coating for That.

From smartwatches to Mars rovers, SFX PCB’s coatings ensure your PCBAs outlast the competition. Contact us today for a free consultation. Let’s future-proof your electronics!
