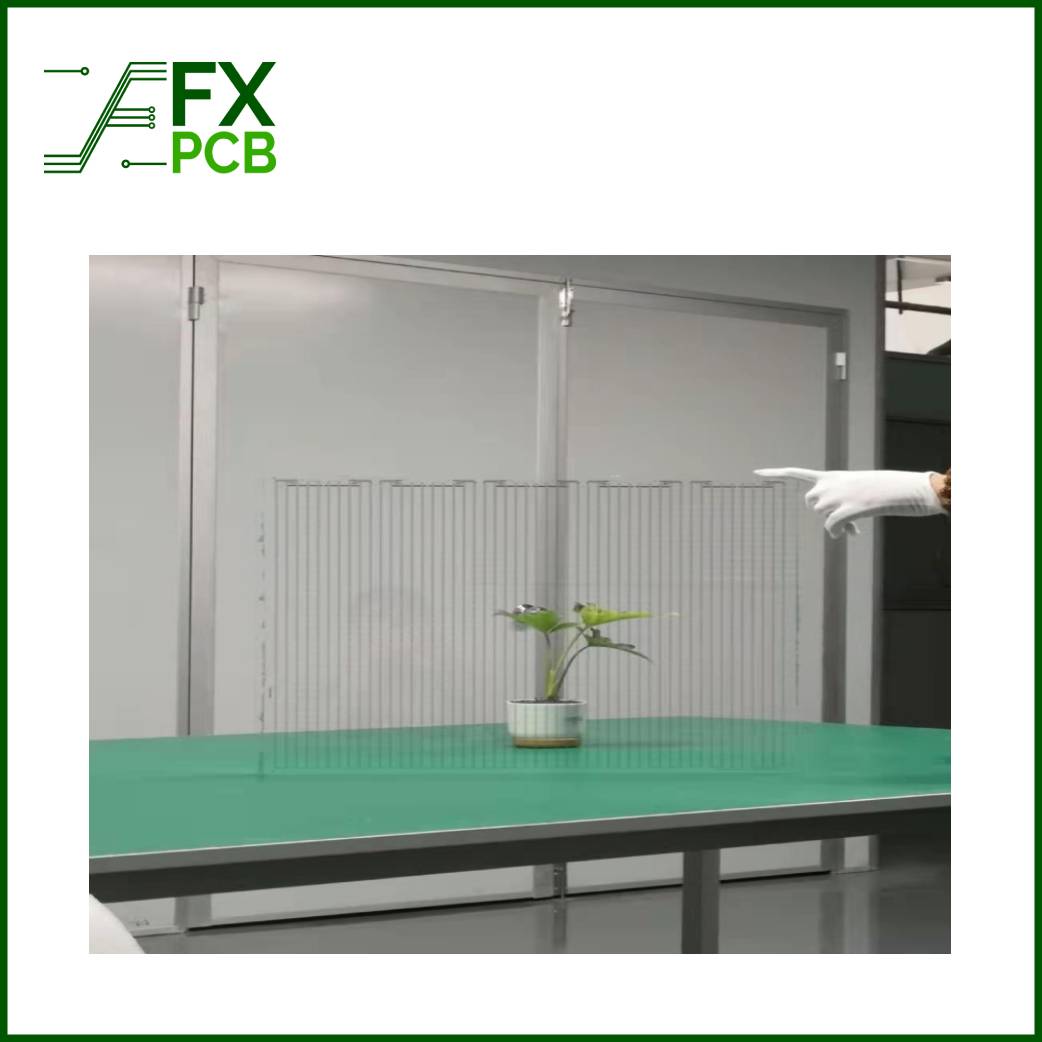

Transparent glass PCB, it used in the LED, 5G, LCD and etc with 360 degree light-emitting package and transparent glass invisible wire decoration.With the revolution in the LED industry, the LED material is from the Aluminium , copper base, Ceramic PCB to the glass PCB. As the glass PCB can 360 degree luminescence, 80 color rendering index can be 140 lmw or more. It don’t need to add the heat sink, and there is no light attenuation.
| Board Thickness(mm)Â Â Â Â Â Â Â Â Â Â Â | 0.6-3.0mm |
| Layer Number           | 1L |
| Base copper thickness(um) | 18/35um |
| Min Track width/space(mm)Â Â Â Â Â Â Â Â Â Â Â | 0.2mm |
| Min hole size | 2.0mm |
| Outline Tolerance(mm) | +/-0.15mm |
| Hole Tolerance          | +/-0.1mm |
| Min space from track to board edge | 0.15mm |
| Surface Treatment | OSP, Immersion silver |
| Â Material |
Tempered low iron glass Float glass Sapphire crystal glass Quartz glass |
