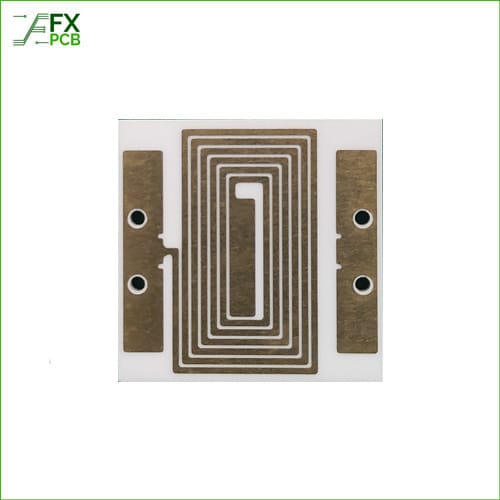

Aluminum Nitride PCB Manufacturer
Fx PCB is a professional manufacturer of Ceramic substrate PCB, and we can make the ALN PCB(Aluminum Nitride PCB) and AI203 circuit boards(Aluminum oxide board). FX PCB manufactures the ceramic PCB using DPC (Direct plate copper) technology, which will plate the copper directly into the ceramic substrate. The advantages of the DPC manufacturing process are high thermal conductivity, high precision of the traces, and reasonable cost.
Let us talk about the ALN(Aluminum Oxide board) here, the substrate is gray in color, while the AI203 is white. The PCB thickness can be 0.38-3.0mm, Alumina substrate PCB size is 50×50 to 138*190mm. Its thermal conductivity is over 170. So even the cost of ALN is more expensive than the AI203, it is still the best choice for customers’ products
Ceramic PCB Capability:
| Board Thickness(mm) | 0.38/0.5/0.635/1.0/1.5/2.0/2.5/3.0mm |
| Layer Number | 1-2L |
| Base copper thickness(um) | 18-300um(0.5-8.5oz) |
| Min Track width/space(mm) | 0.075mm |
| Min hole size | 0.06mm(PTH) |
| Finished hole tolerance(mm) | 0.05mm(NPTH) |
| Outline Tolerance(mm) | 0.05mm |
| Hole Tolerance | +/-0.05mm |
| Min space from track to board edge | 0.2mm |
|
Finished board thickness |
(0.25-0.38mm)+/-0.03mm |
| (0.38-0.635)+/-0.04mm | |
| (0.76-2mm)+/-0.05mm | |
| Surface Treatment | ENIG,ENEPIG,Immersion Silver |
| Material | AIN, AI203 |
Ceramic PCB Materials Properties:
| Item | Unit | Value | Test Standard |
| Color | / | Gray | 3.2 |
| Density | g/cm³ | ≥ 3.33 | GB/T 2413 |
| Thermal Conductivity | 20℃, W/(m · K) | ≥ 170 | GB/T 5598 |
| Dielectric Constant | 1MHz | 8~10 | GB/T 5594.4 |
| Dielectric Strength | KV/mm | ≥ 17 | GB/T 5593 |
| Flexural Strength | Mpa | ≥ 450 | GB/T 5593 |
| Camber | Length‰ | ≤2‰ | |
| Surface Roughness Ra | µ m | 0.3~0.6 | GB/T 6062 |
| Water Absorption | % | 0 | GB/T 3299—1996 |
| Volume Resistivity | 20℃, Ω .cm | ≥ 10¹³ | GB/T 5594.5 |
| Thermal Expansion | 10-6 mm 20~300℃ | 2~3 | GB/T 5593 |
FX PCB uses ceramic material imported from Germany and Fujian Huaqing, all incoming material will be strictly checked for the material properties. If you are looking for an ALN/Aluminum Nitride PCB Manufacture in China, please send us your inquiry.
