2oz Copper PCBs

The minimum copper thickness for a PCB is typically 0.5oz (approximately 17–18 µm), used in standard low-power applications. For 2oz copper boards, the minimum effective trace width and spacing increase slightly — for example, FX PCB supports 6/6 mil line width/spacing at 3oz, with finer rules achievable at lower copper weights.

2oz of copper refers to the weight of copper per square foot of PCB surface, equating to approximately 70 µm thickness. It is classified as a medium copper weight, offering roughly double the current-carrying capacity, improved heat dissipation, and stronger mechanical integrity compared to standard 1oz copper boards, making it ideal for power electronics and industrial designs.

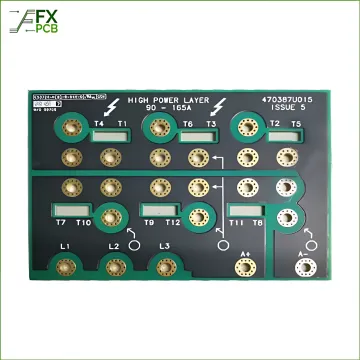

2oz copper PCBs are well suited for power distribution systems, automotive electronics including EV modules, industrial control equipment, UPS systems, medical devices, and high-power LED lighting. Their enhanced thermal conductivity and current-carrying capacity make them reliable in environments where standard 1oz copper boards would overheat or fail under load.

2oz copper PCBs use 70 µm copper layers and are classified as medium copper weight. Heavy copper PCBs use 3oz and above (typically above 3oz per FX PCB's classification), reaching up to 20oz. Heavy copper boards enable even higher current loads, greater thermal strain resistance, and enhanced mechanical durability, though they require wider trace and spacing tolerances.

Yes. FX PCB manufactures 2oz copper PCBs in multilayer configurations. At 3–4oz, boards can be built up to 24 layers in sample runs and up to 20 layers in mass production. Multilayer 2oz copper designs support complex power routing, signal integrity requirements, and thermal management in compact, high-density applications.

FX PCB offers multiple surface finishes for 2oz copper boards including HASL, Lead-Free HASL, ENIG (Electroless Nickel Immersion Gold), Immersion Silver, Immersion Tin, OSP, and Hard Gold. The choice of finish depends on solderability requirements, operating environment, shelf life, and whether RoHS-compliant lead-free processing is needed.
