High TG180 FR4 PCB Design for High-Reliability Electronics

A high Tg temperature refers to a glass transition temperature that exceeds 150°C. In PCB materials, common High Tg grades include Tg150, Tg170, and Tg180, compared to standard FR4 which has a Tg of approximately 130–140°C. The Tg180 grade, for example, withstands temperatures of 180°C or above without deforming or losing mechanical integrity.

FR4 PCB materials are available in multiple Tg grades. Standard FR4 has a Tg of approximately 130–140°C, while High Tg variants are typically graded as Tg150, Tg170, and Tg180. Each higher grade offers increased thermal stability, with Tg180 being the most robust, maintaining structural and electrical performance at the highest operating and soldering temperatures.

Tg180 FR4 offers a 40–50°C higher glass transition point than standard Tg130 material, resulting in superior thermal stability, reduced dimensional warpage under heat, lower moisture absorption, and enhanced mechanical rigidity. These properties are essential for multilayer boards operating in harsh environments, high-frequency circuits, and assemblies undergoing lead-free reflow soldering at elevated temperatures.

Yes. High Tg FR4 is specifically engineered to withstand the higher reflow temperatures associated with lead-free soldering, which typically reach 250–260°C peak. Standard Tg130 FR4 can deform or delaminate under these conditions, while Tg150, Tg170, and Tg180 variants maintain their integrity, making them the preferred substrate for RoHS-compliant PCB manufacturing processes.

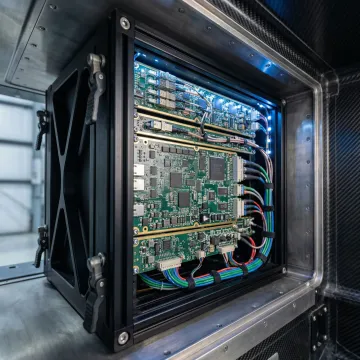

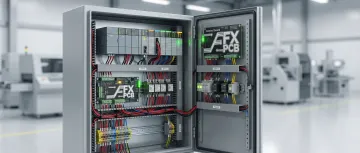

High Tg180 FR4 PCBs are widely used in aerospace and military electronics (radar, avionics, defense systems), medical devices (MRI, X-ray, patient monitoring equipment), automotive control modules and EV electronic systems, and industrial control systems, instruments, and power modules. Any application requiring boards to withstand repeated thermal cycling, high operating temperatures, or demanding mechanical conditions benefits from High Tg FR4 construction.

High Tg FR4 PCBs are available across a wide range of layer counts. Rigid FR4 PCBs can be manufactured from 1 to 68 layers, supporting everything from simple single-layer designs to highly complex, high-density multilayer configurations required in aerospace, medical, and industrial applications.

FX PCB holds ISO9001, ISO13485, and IPC-A-610 Class 2/3 certifications, and is also RoHS compliant. Every High Tg PCB order undergoes 100% electrical testing on bare boards, stage-by-stage quality control inspections, and a complimentary DFM (Design for Manufacturability) analysis. With over 15 years of manufacturing expertise, FX PCB delivers quotes within 24 hours of inquiry.
