Aluminum Base PCB
- Thermal conductivity 5–10x better than epoxy
- Copper thickness from 35µm up to 210µm
- Max board size up to 1200mm x 480mm
ISO 9001 Certified
ISO 13485 Certified
RoHS Compliant
LED PCBs and MCPCBs (Metal Core Printed Circuit Boards) are specialized boards engineered for high-power LED lighting and thermal-critical applications. Built on aluminum or copper substrates, they dissipate heat up to 9x faster than standard FR4 boards, ensuring longer component life, compact designs, and reliable performance across LED, automotive, medical, and aerospace applications.
An MCPCB (Metal Core Printed Circuit Board) is a type of PCB that uses a metal substrate — typically aluminum, copper, or steel alloy — instead of standard FR4. The metal core acts as a built-in heat sink, dissipating heat up to 9x faster than conventional boards. MCPCBs are widely used in high-power LED lighting, automotive electronics, power supplies, and aerospace applications where thermal management is critical.
Talk to our experts for custom solutions and tailored guidance.
Aluminum and copper MCPCBs reduce heat buildup in residential, commercial, and automotive LED systems, extending lamp lifespan.

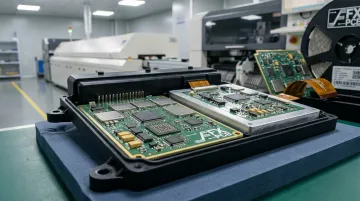

MCPCBs used in ignition systems, power conditioners, variable optics, and camera modules requiring compact thermal management.
Metal core PCBs withstand extreme temperatures, moisture, and mechanical shock in defense avionics and aerospace electronics.
ISO13485-compliant LED PCBs power medical lighting, diagnostics, and monitoring equipment requiring reliable thermal control.
Talk to our experts for custom solutions and tailored guidance.
Over 15 years of deep-rooted expertise delivering high-reliability LED PCBs and MCPCBs to global brands across automotive, medical, and aerospace industries.
ISO9001, ISO13485, and IPC-A-610 Class 2/3 certified facilities with full-service capabilities from bare board fabrication to turnkey PCBA assembly and testing.
Every bare board undergoes 100% electrical testing, and every order includes a free DFM analysis to eliminate costly rework before production begins.
Submit your Gerber files or specifications and our engineers will respond with pricing and DFM feedback within one business day.
