Aluminum PCB Manufacturing

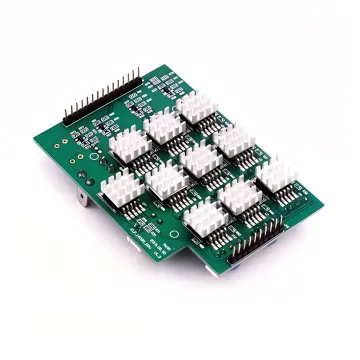

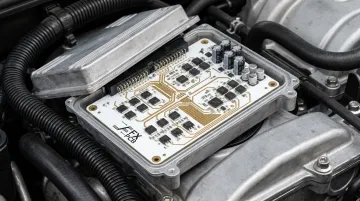

Aluminum base PCBs are widely used in high-power LED lighting systems, automotive electronics (ignitions, power conditioners), power supply and amplification devices, telecommunications equipment, aerospace electronics, medical care devices, air conditioner variable-frequency modules, TV and display backlight sources, computer hardware, and RF sector applications.

SFX PCB offers aluminum PCBs in single-layer, double-layer, multilayer, flexible, hybrid, and through-hole configurations. Board sizes range from 5mm x 5mm up to 1200mm x 480mm, with board thickness from 0.5mm to 5.0mm and copper thickness options from 35μm to 210μm (1oz to 10oz copper foil).

SFX PCB offers multiple surface finish options for aluminum PCBs including HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), and Silver. The appropriate surface finish depends on your application requirements, operating environment, and soldering process specifications.

Aluminum PCBs offer a thermal conductivity of approximately 1–3 W/MK, which is already significantly higher than standard FR4. Copper core PCBs provide superior thermal performance of up to 400 W/MK, making them the preferred choice for the most extreme thermal management requirements. Aluminum is generally more cost-effective, while copper delivers maximum heat dissipation.

Yes. SFX PCB's aluminum PCBs are manufactured in RoHS and REACH compliant facilities. The aluminum and copper materials used are fully recyclable, supporting environmentally responsible manufacturing practices. ISO14001 environmental management certification further ensures adherence to global environmental standards throughout the production process.

You can receive an official quotation within 24 hours of submitting your PCB files and requirements. To get an accurate quote, provide your Gerber files along with specifications such as board size, layer count, copper thickness, surface finish, board quantity, and any special requirements. SFX PCB also offers free DFM (Design for Manufacturability) analysis with every order.
