Aluminum PCB Heat Sinks

Aluminum PCBs offer significantly better thermal performance than FR4 boards. FR4 thermal resistance ranges from 20–22°C/W at 1.5mm thickness, while aluminum PCBs provide far lower thermal resistance. The dielectric layer in aluminum PCBs conducts heat 5–10 times more effectively than conventional epoxy glass used in FR4, making them ideal for high-power and high-temperature applications.

Aluminum PCB heat sinks are available in a wide range of copper thicknesses: 35μm, 70μm, 105μm, 140μm, 175μm, and 210μm — corresponding to approximately 1 oz to 10 oz of copper foil per square foot. Heavier copper weights support higher current carrying capacity and are suited for demanding power electronics and industrial applications.

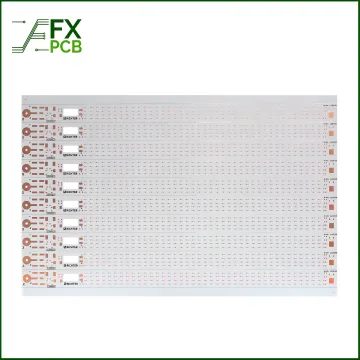

Aluminum PCB heat sinks are used across LED lighting, automotive electronics, aerospace, medical devices, telecommunications, power supply units, consumer electronics, and industrial automation. Their ability to manage heat in compact, high-power designs makes them indispensable in any application where component temperature control directly affects performance and reliability.

Aluminum PCBs are available with HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), and Immersion Silver surface finishes. Each finish offers different solderability, shelf life, and corrosion resistance characteristics. ENIG is preferred for fine-pitch components, while HASL is a cost-effective option for general use.

Yes. SFX PCB offers both bare board fabrication and fully assembled PCBA options for aluminum PCB heat sinks. Turnkey services include SMT and through-hole assembly, component sourcing from a pool of over 600,000 local stock items, and functional testing — allowing you to receive a complete, tested assembly ready for integration.

SFX PCB supports both prototype and mass production orders with no restrictive minimum order quantities specified. Prototype assemblies can be turned around in as little as 24 hours once all parts are available. For custom pricing and lead times specific to your design and volume, submit your Gerber files through the enquiry form for a detailed quote.
