Expert High Density PCB Conformal Coating Services

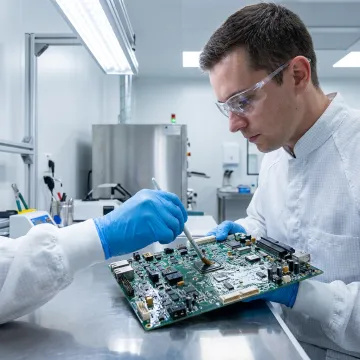

High density PCB conformal coating is a protective finish applied to compact printed circuit board assemblies with tightly spaced components and fine-pitch features. It helps guard against moisture, corrosion, salt fog, chemical exposure, and contamination while preserving electrical performance. For dense PCBAs, coating control, masking, and inspection are especially important because connectors, test points, and small component gaps must be handled precisely.

FX PCB offers protective PCBA coating services including standard conformal coating and advanced Parylene nano-vacuum coating. Parylene coating is especially useful where ultra-thin, uniform coverage is needed, with controllable thickness from 5–30um. The service can support waterproof, moisture-proof, acid and alkali resistant, salt fog resistant, and high-reliability applications across commercial, industrial, medical, and demanding electronics markets.

Yes. Parylene is well suited for high density PCB assemblies because it forms a thin, highly uniform coating that can cover complex surfaces without significantly changing product size. FX PCB’s Parylene process supports 5–30um controllable thickness, high transparency, room-temperature coating, and broad temperature suitability. It is often selected for waterproofing, medical electronics, compact assemblies, and reliability-critical designs.

Protective coating can significantly improve water and moisture resistance, and FX PCB offers waterproof PCBA solutions using advanced coating technologies. Parylene nano-vacuum coating can support IPX-8 level protection for long diving or soaking applications when the overall product design also supports that goal. True waterproof performance depends on the full assembly, enclosure, connectors, interfaces, and final validation testing.

Connectors, switches, test pads, contacts, thermal interfaces, and programmed access points can be selectively masked before coating. During the project review, FX PCB evaluates the assembly layout and customer requirements to identify no-coat areas. Proper masking is critical on high density PCBAs because unwanted coating on contacts or mechanical interfaces can interfere with testing, assembly, rework, or final product operation.

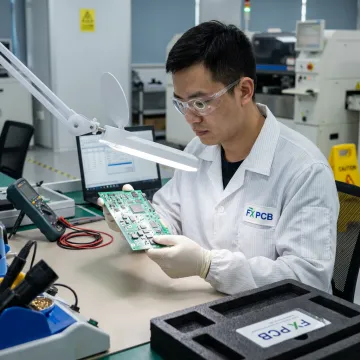

Yes. FX PCB can support inspection and testing after coating, including electrical testing, AOI, X-ray support, and functional testing according to customer specifications. The company can also develop functional test jigs and custom test procedures when needed. This helps confirm that coating coverage and the completed assembly meet performance expectations before shipment or production release.

High density PCB conformal coating is widely used in medical devices, automotive electronics, industrial automation, telecommunications, consumer electronics, aerospace, defense-related systems, LED lighting, and battery management applications. These products often face humidity, vibration, contamination, thermal cycling, or chemical exposure. FX PCB’s certified manufacturing environment supports customers that require reliable assemblies for demanding operating conditions and regulated markets.

Pricing is typically based on board size, coating type, required thickness, masking complexity, quantity, inspection requirements, testing scope, and whether the coating is part of a turnkey PCB assembly project. High density boards may require more precise handling and masking. FX PCB provides transparent manufacturer-direct quotations and can combine coating with PCB fabrication, assembly, sourcing, and testing for cost efficiency.
