PCB Copper Inlays for High-Current Circuit Boards

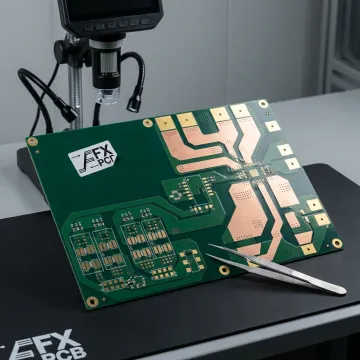

PCB copper inlays are used when a circuit board needs to carry higher current or spread heat more effectively than standard copper traces can support. They are common in power electronics, battery systems, automotive modules, industrial controls, and LED or motor-drive products. Properly designed inlays can reduce resistance, improve thermal paths, and increase operating reliability.

Copper inlays are useful when only specific areas need very high current capacity or heat transfer, while the rest of the board can remain more conventional. Thicker copper may increase cost, etching complexity, and design constraints across the whole PCB. FX PCB can review your current paths, stackup, and layout during DFM to recommend the most manufacturable option.

Yes. FX PCB provides free DFM analysis for every order, including checks for manufacturability, spacing, copper balance, drilling requirements, surface finish, and assembly risks. For high-current designs, this review helps identify issues that could affect reliability, production yield, or thermal performance before fabrication begins.

A complete quotation typically requires Gerber files, drill files, stackup information, board dimensions, copper weight or current requirements, quantity, surface finish, and any special notes related to inlays or thermal management. If assembly is required, include the BOM, pick-and-place file, and test requirements so sourcing, assembly, and inspection can be evaluated accurately.

FX PCB provides 100% electrical testing on bare boards and can add inspection or verification steps such as AOI, X-ray, and functional testing for assembled PCBs. The company also supports custom functional test procedures and fixtures when required. These controls help verify continuity, production quality, assembly accuracy, and application-specific performance before shipment.

Yes. FX PCB offers turnkey PCB assembly, including component sourcing, SMT assembly, through-hole assembly, mixed technology assembly, testing, programming, conformal coating, and final inspection. This is useful when high-current boards need both specialized fabrication and reliable assembly under one coordinated manufacturing workflow.

FX PCB’s facilities and processes are supported by ISO9001, ISO14001, ISO13485, UL, RoHS Compliance, REACH Compliance, and IPC-A-610 Class 2/3 workmanship standards. These credentials are especially important for customers in medical, automotive, industrial, telecommunications, and other regulated or reliability-sensitive electronics markets.

Yes. FX PCB supports fast-turn prototyping, low-volume production, and high-volume manufacturing without requiring customers to switch suppliers. This helps preserve build consistency, documentation, sourcing strategy, and inspection standards as a product matures. Prototype assemblies can move quickly once all parts are available, while larger runs benefit from direct manufacturing and bulk sourcing advantages.
