The Complete Guide to PCB Conformal Coating

Four common conformal coating categories are acrylic, silicone, urethane, and epoxy. Parylene is also widely used for advanced protection, especially where ultra-thin, uniform, high-reliability coverage is required. FX PCB offers conformal coating and Parylene coating options, including nano-vacuum coating for moisture-proof, salt fog resistant, acid and alkali resistant PCB assemblies.

Conformal coating is a thin protective layer applied over an assembled printed circuit board to help shield components and copper features from moisture, contamination, chemicals, corrosion, and environmental stress. The coating conforms to the board’s shape, protecting complex surfaces while maintaining electrical function. FX PCB provides conformal and Parylene coating for demanding commercial, medical, industrial, and defense-related applications.

Conformal coating is recommended when a PCBA may face humidity, condensation, salt fog, chemical exposure, dust, vibration, or wide temperature changes. It is especially valuable in automotive electronics, medical equipment, industrial automation, telecom hardware, LED lighting, and outdoor or portable devices. Coating helps extend product life and reduces field failures caused by environmental contamination.

Parylene coating is deposited through a vacuum process that creates a highly uniform, pinhole-resistant protective layer. FX PCB’s Parylene nano-vacuum coating can be controlled between 5–30um, remains highly transparent, and supports IPX-8 waterproof protection. It is suitable for complex geometries, sensitive assemblies, medical applications, and products needing reliable protection without significant dimensional change.

A properly selected and applied coating should protect the board without interfering with electrical performance, connectors, test points, sensors, or mechanical fit. Parylene is particularly useful when size is critical because it provides ultra-thin, controlled coverage. FX PCB reviews keep-out areas, component sensitivities, and testing needs before coating to reduce risk and maintain functionality.

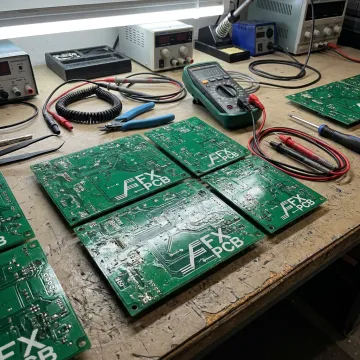

Coating quality can be verified through visual inspection, thickness checks, electrical testing, functional testing, AOI, X-ray where applicable, and custom test jigs. FX PCB supports functional testing and performance verification according to customer specifications. Assemblies are also built with IPC-A-610 Class 2/3 quality expectations, helping ensure consistent reliability before boards are released.

Yes. FX PCB can support coating within a broader turnkey PCB assembly workflow that includes component sourcing, SMT and THT assembly, testing, programming, inspection, and final quality control. This reduces vendor coordination and helps customers move from prototype to production while maintaining consistent manufacturing records, approved component substitutions, and reliable protective coating processes.

Coated PCBAs are valuable in industries where reliability and environmental resistance are critical, including medical devices, automotive electronics, aerospace, military and defense, industrial automation, telecom, consumer electronics, and LED lighting. FX PCB’s coating, waterproof PCBA, and testing capabilities support products that must perform consistently in moisture, chemical, salt fog, and temperature-stressed environments.
