Flex PCB Assembly with SMT Technology

A flex PCB is entirely flexible, using a polyimide substrate throughout, and is suited for applications requiring continuous bending or tight space constraints. A rigid-flex PCB combines rigid FR4 sections with flexible polyimide zones in one integrated board, providing both structural support and routing flexibility. Rigid-flex designs reduce connectors and improve overall system reliability in demanding environments.

SFX PCB's flex PCBs support up to 8 layers in low-volume production and single or double panels in mass production. Rigid-flex PCBs can reach up to 20 total layers, with the flexible section supporting up to 12 layers. Layer counts are selected based on circuit complexity, signal integrity requirements, and the specific application's space and weight constraints.

SFX PCB offers multiple surface coating options including ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), Immersion Silver, Immersion Tin, HASL (Lead-free), ENEPIG, Soft Gold, and Gold Plating. Each coating serves different solderability, oxidation resistance, and application requirements, including RoHS-compliant lead-free finishes for global market access.

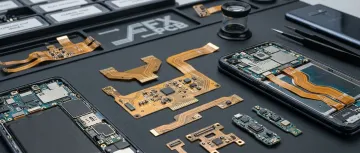

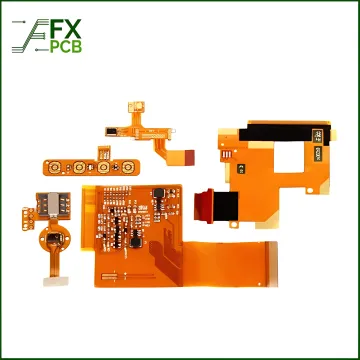

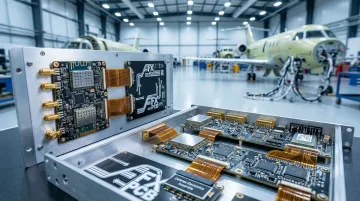

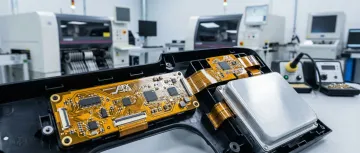

Flex PCB assemblies are widely used across medical devices (hearing aids, defibrillators, ultrasound equipment), aerospace and defense (radars, night vision, guidance systems), automotive electronics (dashboards, ABS systems), consumer electronics (smartphones, wearables, cameras), industrial automation, telecommunications infrastructure, and LED lighting systems requiring compact, reliable, and bendable circuit solutions.

For low-volume flex PCB production at SFX PCB, the inner layer line width/space is 2.5mil/2.5mil and the outer layer is 3mil/3mil. For mass production, inner layers achieve 3mil/3mil and outer layers 4mil/4mil. These fine trace capabilities enable high-density, miniaturized circuit designs essential for compact wearable, medical, and aerospace applications.

You can request a quote by submitting your PCB design files (Gerber, BOM, assembly drawings) through the SFX PCB online enquiry form or by emailing info@sfxpcb.com. Quotations are typically provided within 24 hours. SFX PCB also includes a free DFM (Design for Manufacturability) analysis with every order to identify potential design issues before production begins.
