Custom PCB Flex for Space-Saving Designs

Flex in PCB refers to the use of a flexible substrate — typically polyimide (PI) — instead of rigid FR4, allowing the board to bend, fold, or conform to three-dimensional shapes. Flex PCBs reduce weight, eliminate mechanical connectors, minimize assembly errors, and enable compact designs in space-constrained applications like wearables, medical devices, and aerospace electronics.

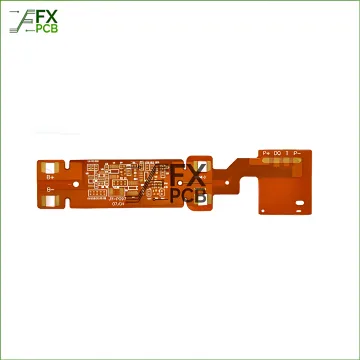

A well-designed flex PCB using polyimide substrate can endure up to 500 million flex cycles without failure, making it suitable for applications requiring continuous or dynamic bending. The allowable bend radius and cycle life depend on copper weight, layer count, and adhesive type. FX PCB's single-layer flex boards are specifically rated for 500 million flex cycles.

A flex PCB is entirely flexible and can be routed freely in 3D space, while a rigid-flex PCB combines flexible (FPC) sections with rigid board zones in a single integrated assembly. Rigid-flex designs offer the spatial freedom of flex circuits at connection points alongside the structural support of rigid boards for component mounting — ideal for complex, compact assemblies.

FX PCB supports single-layer flex PCBs through to 30-layer configurations for low-volume production, and up to 16 layers for mass production flex boards. Rigid-flex PCBs support up to 20 total layers, with up to 12 FPC layers. This range accommodates simple interconnects through to complex high-density multilayer assemblies for aerospace and medical applications.

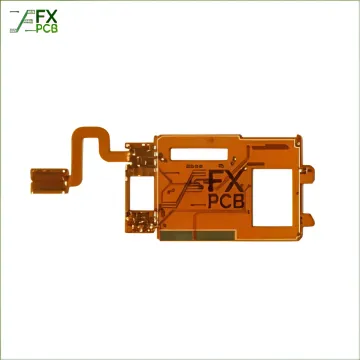

Custom flex PCBs are widely used in medical devices (hearing aids, defibrillators, ultrasound equipment), aerospace and defense (radars, night vision systems), automotive electronics (ABS, dashboards, EV battery management systems), telecommunications (smartphones, base stations), industrial automation, wearable technology, and consumer electronics (cameras, printers). Their compact, lightweight, and durable nature makes them essential in any space-constrained or dynamic application.

FX PCB holds ISO 9001, ISO 13485, and ISO 14001 certifications, ensuring rigorous quality and environmental management standards. Every board ships with 100% electrical testing, automated optical inspection (AOI), and flying probe verification. The company also maintains RoHS and REACH compliance certifications, confirming that all flex PCB products meet international regulations for hazardous substance restrictions.

FX PCB offers 8-hour quoting for custom flex PCB projects. Once an order is placed, engineers provide free DFM (Design for Manufacturability) analysis along with stack-up recommendations and transparent pricing. Prototype assembly turnaround is available within 24 hours, and FX PCB supports scaling seamlessly from single prototypes to high-volume mass production — all from one supplier.
