Flex Circuit PCB for Compact Electronic Products

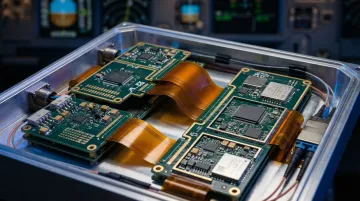

Flex circuit PCBs are used across aerospace and defense, medical devices (hearing aids, defibrillators, ultrasound), automotive (ABS systems, dashboards), telecommunications (smartphones, tablets), industrial automation, consumer electronics, and wearable technology. Their compact profile and 3D layout flexibility make them suitable for any application where space, weight, or movement is critical.

SFX PCB's standard flex PCBs support up to 8 layers in low-volume production and single or double panels in mass production. Rigid-flex PCBs support up to 20 total layers, with the FPC section supporting up to 12 layers. Single-layer flex PCBs for mass production support 1–16 layers and up to 30 layers for low-volume orders.

The primary base material is polyimide (PI) copper-clad laminate, prized for thermal resilience, chemical resistance, and long flex-cycle durability. Other available substrates include polyester (PET), aramid cellulose ester, PVC, and DuPont films with adhesive or non-adhesive configurations depending on the application's mechanical and environmental requirements.

Available surface coatings include ENIG (Electroless Nickel Immersion Gold), OSP, HASL, Immersion Silver, Immersion Tin, ENEPIG, Soft Gold, and Gold Plating. The choice of finish affects solderability, oxidation resistance, shelf life, and compatibility with SMT assembly. RoHS-compliant lead-free finishes are available for all product lines.

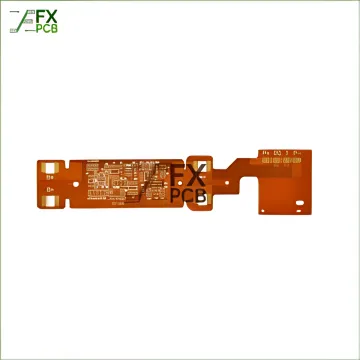

Yes. SFX PCB manufactures flex circuit PCBs for medical applications including hearing aids, pulse generators, defibrillators, X-ray equipment, and ultrasound devices. The company holds ISO 13485 certification for medical device quality management. All boards can be produced with RoHS-compliant materials and rigorous IPC Class II/III quality control standards.

For low-volume production, inner layer line width/space is 2.5mil/2.5mil and outer layer is 3mil/3mil. Laser drilling achieves 4mil minimum in low volume and 5–6mil in mass production. BGA capability reaches down to 0.15mm, and outline tolerance is held to +/-0.025mm — enabling high-density, miniaturized flex circuit designs.
