PCB Testing Solutions: Guide to Methods and Best Practices

Functional testing in PCB manufacturing verifies that an assembled board performs as intended in real operating conditions. Instead of only checking appearance or continuity, it powers the PCBA, applies signals or loads, measures outputs, and confirms behavior against customer specifications. FX PCB can develop functional test procedures and fixtures to validate performance, configuration, and reliability before shipment.

Common types of functional testing include power-on testing, signal input and output verification, communication interface testing, firmware or configuration checks, load testing, sensor or actuator response testing, and full system simulation. For PCB assemblies, these tests are often performed with custom jigs, test points, automated measurements, and customer-defined pass/fail criteria to confirm product readiness.

Electrical testing usually checks basic circuit integrity, such as opens, shorts, polarity, resistance, continuity, and net connectivity. Functional testing goes further by confirming whether the assembled PCB operates correctly as a product or subsystem. A board can pass basic electrical checks but still fail functional requirements, so both methods are valuable for reducing field failures.

PCB testing should begin during prototype validation and continue through production. Bare boards are typically electrically tested before assembly, while PCBAs are inspected after component placement and soldering. Functional tests are most useful after assembly, programming, and configuration because they confirm the board’s operating behavior before it is released for integration or shipment.

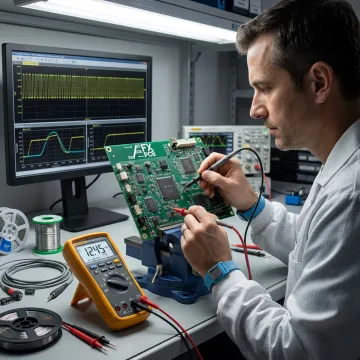

Many PCB assemblies benefit from custom test fixtures, especially when repeated measurements, stable probe contact, or production-scale consistency are required. Fixtures can hold the board securely, connect to test points, apply power or signals, and speed up pass/fail decisions. FX PCB can develop functional test jigs based on the customer’s board design and testing requirements.

PCB testing is often supported by automated optical inspection, X-ray inspection, electrical testing, and functional test procedures. AOI helps detect placement and soldering issues, while X-ray is useful for hidden joints such as BGAs. Electrical and functional tests then verify circuit behavior, giving a more complete picture of assembly quality and performance.

FX PCB supports rigorous quality practices aligned with IPC-A-610 Class 2/3 expectations and operates with ISO9001, ISO14001, and ISO13485 certified facilities. The company also supports RoHS and REACH compliance for global market access. These standards help ensure consistent workmanship, environmental responsibility, and reliability for industrial, medical, automotive, telecommunications, and consumer electronics applications.

Yes. Structured PCB testing catches design, assembly, component, and performance issues before products move into expensive production or customer deployment. Prototype functional testing can reveal weaknesses early, while production testing improves consistency and reduces escapes. Combined with FX PCB’s free DFM analysis, inspection capabilities, and sourcing support, testing helps prevent costly redesign cycles.
