Copper Core PCB for Enhanced Heat Dissipation

FX PCB offers Copper Core PCBs in single-sided, double-sided, multilayer, and high-frequency variants. Specialty options include Copper Coin PCBs with embedded copper coins for localized thermal hot spots, and Heavy Copper PCBs with foil thickness from 2 oz to 20 oz to suit ultra-high-current and extreme-environment applications.

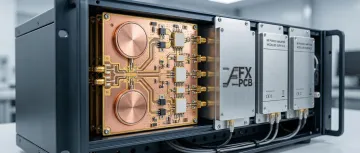

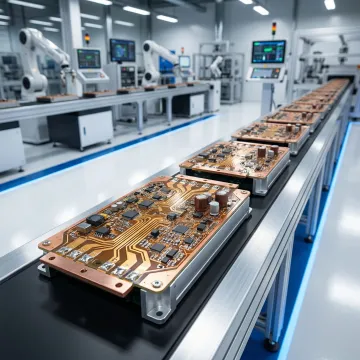

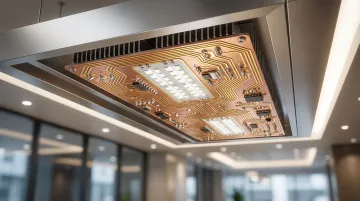

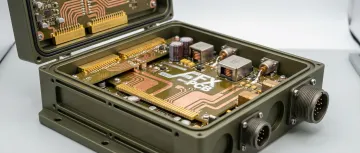

Copper Core PCBs are widely used in automotive electronics (including EV components), LED lighting systems, aerospace and military equipment, medical devices, power supply and conversion systems, 5G and telecommunications infrastructure, radar systems, and industrial automation. Any industry requiring compact designs with superior thermal management benefits from copper core technology.

A Copper Core PCB uses a solid copper substrate as the base layer for maximum thermal dissipation across the entire board. A Heavy Copper PCB uses standard FR4 or other substrates but features copper foil thickness of 3 oz or more (up to 20 oz), enabling high current carrying capacity. Both leverage copper's 400+ W/MK conductivity but serve different design requirements.

Available surface finishes include OSP (Organic Solderability Preservative), ENIG (Electroless Nickel Immersion Gold), and Immersion Tin. For Copper Coin PCBs, ENIG is the standard finish, ensuring excellent solderability and oxidation resistance. The right finish depends on your application's soldering requirements, shelf life expectations, and operating environment.

Standard Copper Core PCBs support copper foil from 1 oz to 10 oz, while Heavy Copper PCBs extend this range up to 20 oz (with foil thicknesses of 105 µm, 140 µm, 175 µm and above). Board thicknesses of 1 mm, 1.2 mm, 1.5 mm, and 2 mm are available as standard options, with custom configurations upon request.

Yes. FX PCB manufactures Copper Core PCBs under ISO9001, ISO14001, and ISO13485 certified processes, with RoHS and REACH compliant options available. Copper and aluminum used are recyclable materials supporting environmentally responsible production. For specialized sectors such as aerospace, military, or medical, please contact FX PCB directly for specific compliance documentation.
