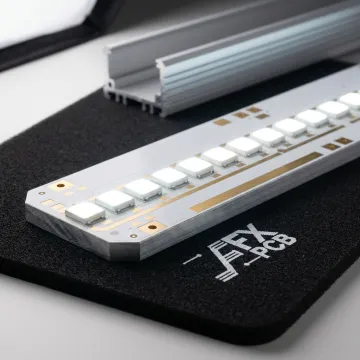

LED Light Bar Circuit Boards — Super Bright

Repairing an LED light bar typically involves identifying failed LEDs or damaged solder joints on the circuit board using a multimeter or visual inspection. Individual LEDs can be replaced via SMT reflow soldering. If the PCB substrate is damaged — such as a delaminated aluminum base or cracked copper core — the board usually needs full replacement. SFX PCB offers both bare replacement boards and fully assembled PCBAs for light bar repairs.

Metal Core PCBs — particularly Aluminum Base PCBs and Copper Core PCBs — are the preferred choice for LED light bars. Aluminum MCPCBs offer a cost-effective balance of thermal performance and durability, while Copper Core PCBs deliver up to 400 W/MK thermal conductivity for the most demanding high-power applications. Ceramic PCBs are ideal where extreme temperature stability and electrical insulation are required.

Aluminum Base PCBs have a dielectric thermal conductivity 5 to 10 times higher than conventional epoxy glass (FR4) boards. The aluminum substrate itself has a thermal resistance lower than FR4, which ranges 20–22°C/W at 1.5mm thickness. This makes aluminum MCPCBs a reliable, cost-effective solution for managing heat in residential, commercial, and automotive LED lighting systems.

Yes. SFX PCB manufactures LED light bar circuit boards to custom dimensions, with aluminum base boards available from as small as 5mm × 5mm up to 1200mm × 480mm. Board thickness ranges from 0.5mm to 5.0mm, and copper weights from 1oz to 10oz. Customers submit Gerber files to receive a tailored quote, with prototyping and mass production services available globally.

SFX PCB offers multiple surface finish options depending on the board type: HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), Immersion Silver, Immersion Tin, and ENEPIG. For LED light bar applications, ENIG is commonly recommended for its flat surface and excellent solderability, which ensures reliable LED chip mounting and long-term joint integrity.

Yes. SFX PCB holds RoHS and REACH compliance certifications across its product range. LED light bar PCBs are manufactured using recyclable aluminum or copper substrates and are available with lead-free surface finishes including ENIG, OSP, and Immersion Tin. RoHS-compliant production ensures products meet international environmental standards required for sale in Europe, North America, and other major markets.
