Custom Flexible PCB for Compact Electronic Devices

Flex PCBs generally have higher unit material costs than rigid PCBs due to specialized polyimide substrates and manufacturing processes. However, total system cost is often lower because they eliminate mechanical connectors, reduce assembly time, minimize wiring errors, and enable miniaturized designs — delivering significant savings in complex or high-reliability applications over the product lifecycle.

Use a flex PCB when your design requires bending, folding, or fitting into a confined or irregular space — such as wearables, hearing aids, cameras, or automotive dashboards. They are also ideal when reducing weight, eliminating connectors, improving vibration resistance, or achieving three-dimensional circuit routing is a priority in your electronic assembly.

FX PCB's flexible boards use polyimide (PI) as the primary substrate due to its excellent thermal resilience and flexibility. Other insulating options include PET, Aramid, and PVC. Conductive layers use copper foil, and surface finishes include ENIG, OSP, Immersion Silver, Immersion Tin, and HASL — selected based on application requirements and RoHS compliance needs.

A flex PCB is entirely flexible, ideal for dynamic bending applications. A rigid-flex PCB combines rigid and flexible sections in one integrated board, offering structural support where needed while allowing flexible interconnects. Rigid-flex designs support up to 20 layers, simplify assembly, reduce connector points, and are widely used in aerospace, medical devices, and compact consumer electronics.

FX PCB's single-layer flex PCBs support 1–30 layers for low-volume orders and 1–16 layers for mass production. The standard Flex PCB supports up to 8 layers in low-volume runs. Rigid-flex PCBs support up to 20 total layers with FPC sections reaching up to 12 layers, accommodating high-complexity multilayer configurations for advanced electronics.

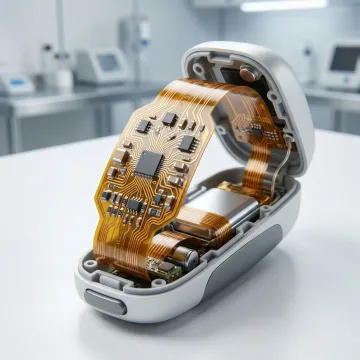

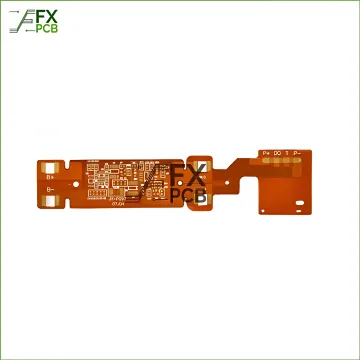

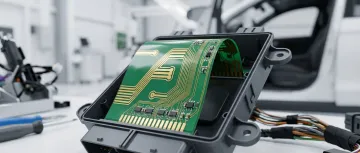

Flexible PCBs are widely used in medical devices (hearing aids, defibrillators, pulse generators), aerospace and defense (radars, night vision), automotive (ABS systems, dashboards), consumer electronics (smartphones, cameras, wearables), telecommunications (tablets, base stations), and industrial automation. Their ability to reduce size and weight makes them essential across any space-constrained or high-reliability electronic application.
