Metal Core Printed Circuit Boards - High-Performance Thermal Solutions

Thermal conductivity varies by substrate material. Aluminum base MCPCBs typically achieve 1–3 W/MK, which is already 5–10x higher than conventional FR4. Copper core PCBs can reach up to 400 W/MK, offering the highest thermal performance. Ceramic PCBs using Aluminum Nitride (ALN) substrates achieve ≥170 W/(m·K), making them suitable for extreme high-frequency and high-power environments.

Aluminum core PCBs offer a cost-effective solution with good thermal performance (1–3 W/MK), lightweight construction, and excellent recyclability — ideal for LED lighting and general power applications. Copper core PCBs provide far superior thermal conductivity (up to 400 W/MK) and dimensional stability with an elastic modulus of ~121,000 MPa, making them the preferred choice for high-power, high-density, and precision electronics.

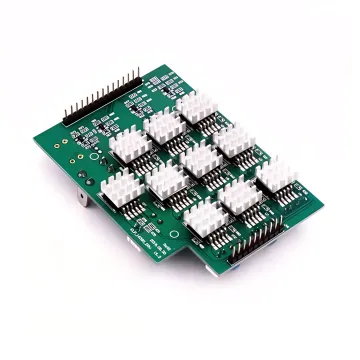

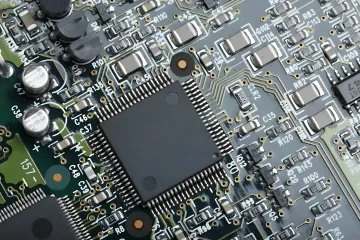

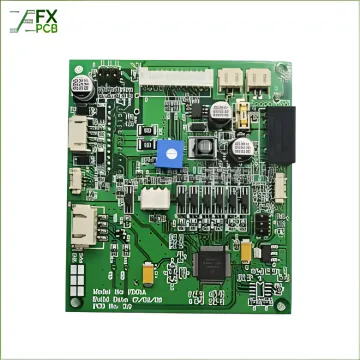

MCPCBs are widely used in LED lighting systems, automotive electronics (ignition systems, power conditioners, variable optics), power supply devices, military and aerospace equipment, telecommunications infrastructure, medical devices, industrial control systems, and RF/microwave circuits — any application where effective heat dissipation and compact design are critical to performance and reliability.

Yes. One of the primary advantages of MCPCBs is that their metal substrate and thermally conductive dielectric layer efficiently transfer heat away from components directly through the board. This eliminates or reduces the need for separate heat sinks and bulky insulated hardware, freeing up board space and reducing overall assembly weight and complexity.

SFX PCB's metal core PCBs support circuit layer copper weights from 1 oz to 10 oz (35µm to 350µm), covering Standard (0.5–1 oz), Medium (2–4 oz), Heavy (5–10 oz), and Ultra-Heavy (10–20 oz) configurations. The appropriate copper weight depends on your current-carrying requirements, thermal needs, and application environment.

SFX PCB designs its MCPCBs in alignment with RoHS-compliant and environmentally responsible manufacturing practices. Both aluminum and copper substrates are recyclable materials. For specific compliance documentation including RoHS, REACH, and other regulatory certifications applicable to your project, contact SFX PCB directly with your design specifications.
