High-Quality Rigid PCB for Industrial Electronics

Rigid PCBs use a solid substrate (e.g., FR4) that cannot bend, providing superior mechanical stability, higher layer counts, and lower cost for most applications. Flexible PCBs use polyimide substrates that can bend and fold, enabling compact packaging in wearables or dynamic-flex applications. Rigid-flex hybrids combine both properties for designs requiring both stiffness and movement.

The three primary PCB types are: (1) Single-sided — components and traces on one layer, suitable for simple circuits; (2) Double-sided — conductive layers on both sides connected by through-holes, ideal for moderate complexity; and (3) Multilayer — four or more layers laminated together, enabling high-density routing, controlled impedance, and advanced signal integrity for complex electronics.

FX PCB offers rigid PCBs in FR4 (standard and high-Tg up to Tg180), Rogers RO4000 series for high-frequency RF applications, Isola, ITEQ, Ventec, and Arlon specialty laminates. Heavy copper configurations are available from 2 oz up to 20 oz per layer, and metal-core variants use aluminum or copper base materials for superior thermal management.

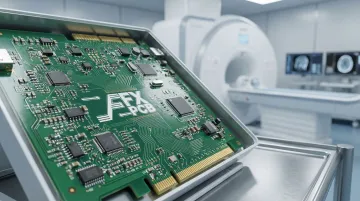

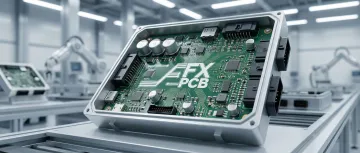

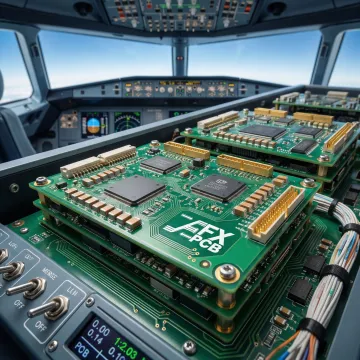

FX PCB's rigid PCBs are manufactured in ISO9001, ISO14001, and ISO13485 certified facilities. Products comply with IPC manufacturing guidelines, IPC-A-610 Class 2/3 assembly standards, UL listing requirements, and RoHS and REACH environmental directives — making them suitable for medical, automotive, aerospace, and global consumer electronics markets.

FX PCB supports rigid PCB layer counts from 1 to 68 layers. Standard multilayer configurations include 4, 6, 8, and higher custom counts. High-layer-count boards support blind and buried vias, impedance control, and advanced HDI routing for demanding telecommunications, military, and high-performance computing applications.

Standard production lead times for rigid PCBs are typically 5–10 business days, with expedited services available upon request. Official quotations are provided within 24 hours of submitting Gerber files. Express delivery is available for qualifying Rigid FR4 PCB orders, and all boards undergo Quality Control inspection before dispatch.
