Insulated Metal Substrate PCBs — IMS Circuit Boards

IMS stands for Insulated Metal Substrate. The term describes the board's fundamental construction: a metal substrate (the base layer providing structural support and thermal conduction) combined with an insulating dielectric layer that electrically isolates the metal from the copper circuit layer above it. The insulating layer bonds the layers together while simultaneously conducting heat away from components to the metal base.

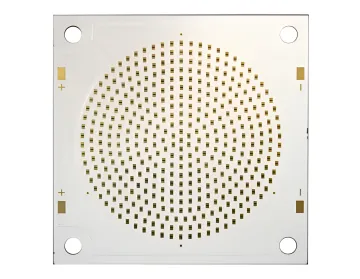

Aluminum core IMS PCBs offer a cost-effective thermal solution with conductivity of 1–3 W/MK, making them the standard choice for LED lighting and general power applications. Copper core IMS PCBs deliver up to 400 W/MK thermal conductivity — significantly higher — making them ideal for ultra-high-power density applications such as radar, microwave, and RF systems where maximum heat dissipation is non-negotiable.

IMS PCBs outperform FR4 significantly in thermal management. FR4 boards have a thermal resistance of approximately 20–22°C/W at 1.5mm thickness, while aluminum IMS boards can dissipate heat 5–10 times more effectively than conventional epoxy-glass boards. Metal core PCBs can dissipate heat up to 9x faster than FR4, eliminating the need for separate heat sinks and reducing component temperatures to extend product lifespan.

SFX PCB offers IMS boards with copper foil thicknesses ranging from 1 oz to 10 oz (35µm to 350µm), covering standard, medium, heavy, and ultra-heavy copper weights. Board thickness options typically span 0.5mm to 5.0mm for aluminum base boards, and 1mm, 1.2mm, 1.5mm, and 2mm for copper core variants. Custom thicknesses are available upon inquiry based on your specific application requirements.

Available surface finish options vary by IMS board type. Aluminum Base PCBs support HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), and Immersion Silver. Copper Core PCBs support OSP, ENIG, and Immersion Tin. The choice of finish affects solderability, shelf life, and compatibility with your assembly process — our engineers can recommend the best option for your design.

Yes. SFX PCB offers complete turnkey PCBA services for all IMS board types, including SMT and through-hole (THT) component placement, component sourcing from a 600k+ part local stock library, and functional testing (FCT). This means you can receive a fully tested, ready-to-integrate assembly rather than a bare board, reducing your supply chain complexity and time-to-market significantly.
