Copper Coin PCB for Thermal Management Solutions

Yes, copper is fundamental to PCB construction and is used in multiple ways: as conductive trace layers (typically 0.5–20 oz), as the core material in copper core PCBs for maximum thermal conductivity up to 400 W/MK, as embedded copper coins for localized thermal management, and as the plating material in plated through-holes. Copper's high electrical and thermal conductivity makes it the preferred material for both signal routing and heat dissipation in advanced PCB designs.

One ounce (1 oz) of copper on a PCB equals approximately 35 micrometers (1.4 mils) in thickness. This is the standard baseline for most general-purpose PCBs. For high-power or thermal management applications, heavier copper weights are used — FX PCB manufactures boards from 0.5 oz up to 20 oz (approximately 700 micrometers), with heavy copper starting above 3 oz for applications requiring high current capacity and superior heat dissipation.

Copper coin PCBs offer several advantages over FR4 boards with external heatsinks: they provide a near-direct heat path with significantly lower thermal resistance, save board space by eliminating bulky heatsink hardware, support high-density multilayer designs, maintain signal integrity in RF and high-frequency circuits, and use a proprietary lamination process to prevent defects such as depressions, resin overflow, and cracks between the coin and surrounding board material.

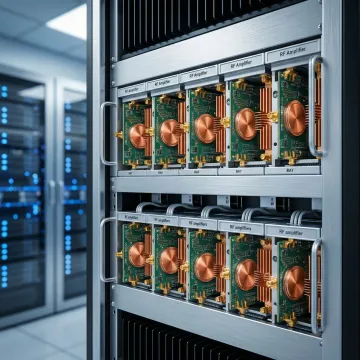

Copper coin PCBs are best suited for applications with localized thermal hot spots requiring efficient heat extraction. These include 5G communication base stations, power amplifiers, RF electronics, power modules, industrial telecom infrastructure, and high-density multilayer designs. Any application where component-level heat concentration exceeds the capacity of standard FR4 thermal management — without the space budget for large external heatsinks — benefits from copper coin technology.

Copper coin PCBs from FX PCB are compatible with ENIG (Electroless Nickel Immersion Gold) and OSP (Organic Solderability Preservative) surface finishes. ENIG is commonly specified for its flat surface, excellent solderability, and compatibility with fine-pitch components. OSP is a cost-effective option providing adequate oxidation protection for standard SMT assembly processes. The choice of finish depends on assembly method, storage requirements, and end-use environment.

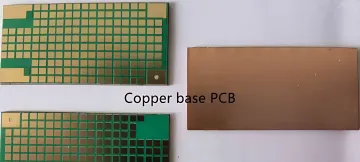

Copper core PCBs deliver thermal conductivity up to 400 W/MK, compared to just 1–3 W/MK for aluminum PCBs — making copper core boards over 100 times more thermally efficient. Copper also offers superior dimensional stability with an elastic modulus of approximately 121,000 MPa, resulting in lower warpage and thermal expansion. While aluminum PCBs are more cost-effective for general LED and consumer applications, copper core is the preferred choice for high-power, high-reliability designs.
