Aluminum core PCBs offer a cost-effective solution with thermal conductivity of 1–3 W/MK and are widely used in LED lighting, automotive, and consumer electronics. Copper core PCBs deliver up to 400 W/MK thermal conductivity, superior dimensional stability (elastic modulus ~121,000 MPa), and are preferred for ultra-high-power, RF, radar, and microwave applications where maximum heat extraction is critical.

Standard FR4 PCBs have thermal resistance of 20–22°C/W at 1.5mm thickness and very low thermal conductivity. Metal-backed PCBs with thermally conductive dielectric layers dissipate heat 5–9x faster than FR4. The aluminum or copper substrate spreads heat uniformly, lowering junction temperatures and significantly extending component lifespan in high-power applications.

FX PCB offers copper foil thicknesses from 1oz to 10oz (35µm–350µm) across all metal-backed PCB types. Board thickness ranges from 0.5mm to 5.0mm for aluminum base boards, with standard options of 1.0mm, 1.2mm, 1.5mm, and 2.0mm for copper core variants. Custom thicknesses are available upon request by submitting Gerber files.

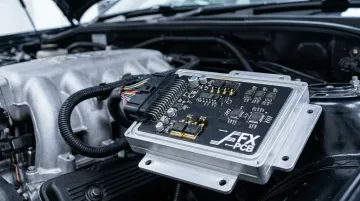

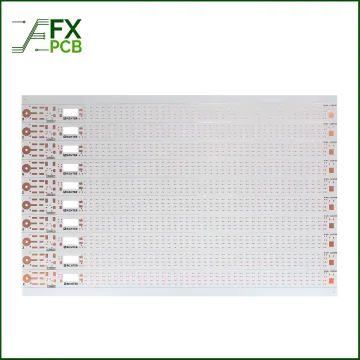

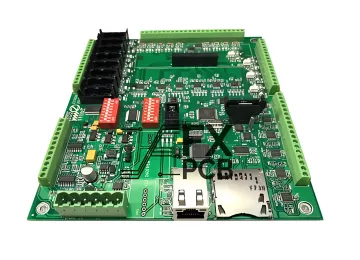

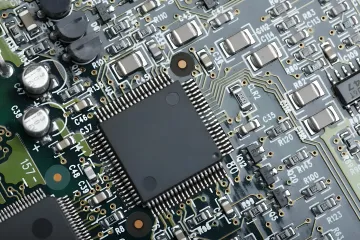

Key industries include LED lighting (residential, commercial, automotive), automotive electronics (ignitions, power conditioners, variable optics), aerospace and military (thermal cycling resistance, mechanical shock tolerance), medical devices (precise signal processing, reliability), power supply equipment (converters, switching regulators), and telecommunications infrastructure requiring high-density thermal management.

Available surface finishes include HASL (Hot Air Solder Leveling, rated above 250°C for aluminum base), ENIG (Electroless Nickel Immersion Gold), OSP (Organic Solderability Preservative), Immersion Silver, and Immersion Tin for copper core boards. Choice depends on solderability requirements, operating temperature, and whether the application demands wire bonding or fine-pitch component mounting.

Yes. FX PCB holds RoHS and REACH compliance certifications across its product range. Both aluminum and copper base materials are fully recyclable, supporting environmentally responsible manufacturing. RoHS-compliant and halogen-free manufacturing options are available, and all products can be produced to meet specific regional and application-level regulatory requirements including ISO13485 for medical devices.
